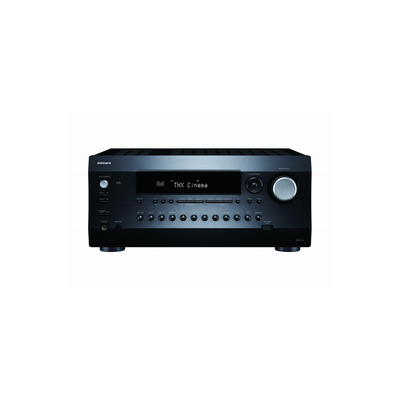

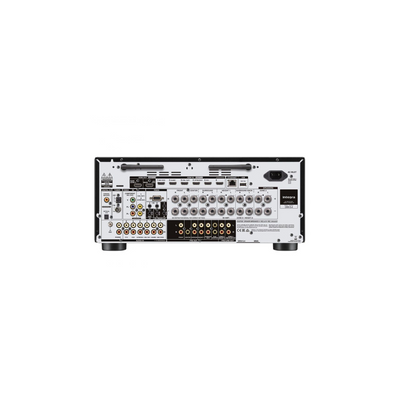

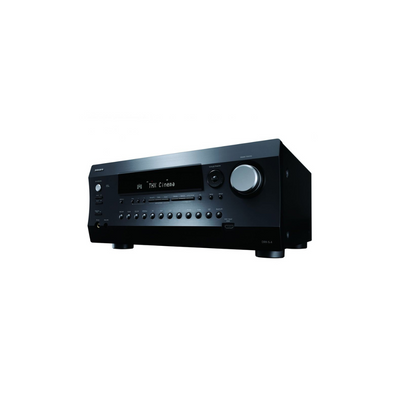

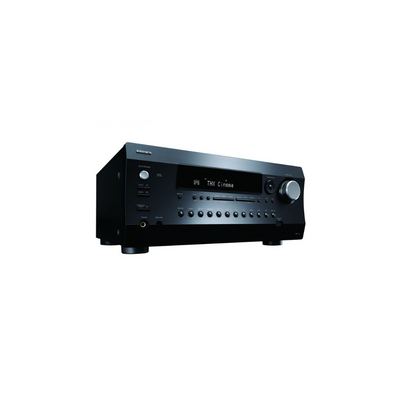

Integra DRX-5.4 9.2 Channel 8K Home Theatre AV Receiver | Atmos | HDR | eARC | Multiroom
Product Description
Integra
DRX-5.4 9.2 Channel 8K Home Theatre AV Receiver | Atmos | HDR | eARC | Multiroom
Integra DRX-5.4 9.2 Channel 8K Home Theatre AV Receiver delivers 215 watts per channel and features Dolby Atmos, 8K passthrough and Chromecast built-in, Cinema-reference Dolby Atmos® or DTS: X® sound through up to 7.2.4 channels* complements 8K HDR video passthrough. Connect 5.2.4-ch speakers and Zone 2 speakers and switch between 5.2.4-ch and 5.2.2-ch + Zone 2 playback, or use 5 GHz/2.4 GHz Wi-Fi® and your voice to control music all around your home. Integra now includes a feature to allow the integration of a Sonos Connect to become part of the Sonos multi-room music system.
* Requires connection of an external stereo power amp
- Aluminium front panel and volume knob
- Front-to-Surround/Height speaker switching in Stereo Assign Mode
- One-touch volume memory preset assignment to individual A/V inputs via front panel
- OSD function displays A/V input signal data, output signal/settings data, and network information
- Dolby® TrueHD and DTS-HD Master Audio® decoding
- THX® listening modes for films, games, and music
- Advanced Music Optimizer™ improves compressed audio playback quality
- High-definition GUI over HDMI
- Super Resolution 1080p to 4K and 1080p/4K to 8K video upscaling via HDMI
- Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)
- A/V Sync Control (Up to 500 ms in 1 ms Steps at 48 kHz*20)
- Sleep timer, HDMI passthrough, and network standby
- 40 FM/AM/internet radio presets with station-naming (10 characters)
- 3-Mode display dimmer (Normal/Dim/Dimmer)
Specification
| Brand | Integra |
|---|---|
| Number Of Channels | 9.2 Channel |
| Frequency Response | 10 Hz - 100 kHz |
| Watts RMS per Channel (4 Ω) | 220 Watts |
| Watts RMS per Channel (6 Ω) | 215 Watts |
| Watts RMS per Channel (8 Ω) | 130 Watts |
| Smart Voice Assistant | Works with Alexa, Works with Google Assistant |
| AirPlay | AirPlay 2 |
| DTS Play-Fi® | Yes |
| Chromecast (built-in) | Yes |
| App Remote Control | Yes |
| Wireless Technology | Bluetooth, aptX™, aptX™ HD |
| On-Screen Display | Yes |
| Supported HDR Formats | Dolby® Vision, HDR10, HDR10+, HLG (Hybrid Low-Gamma) |
| HDMI Standby Pass-through | Yes |
| 4K Ultra HD Pass Through | Yes |
| Room Calibration & Speaker Optimisation | Yes |
| FM | Yes |
| AM | Yes |
| Built-in DAC (Digital to Analogue Converter) | Yes |
| Online Audio Services Support | Spotify Connect, TIDAL, Deezer, Amazon Music, TuneIn |
| Hi-Res Audio Support | FLAC (24-bit/192 kHz), ALAC (24-bit/192 kHz), WAV (24-bit/192 kHz), AIFF (24-bit/192 kHz) |
| Input Sensitivity | 200 mV rms/47 kΩ (Line/Unbalance) |
| Input Impedance | 3.5 mV rms/47 kΩ (Phono MM) |
| Total Harmonic Distortion | 0.08% (20 Hz–20 kHz, Half Power) |
| Signal-to-Noise Ratio | 106 dB (IHF-A, Line); 80 dB (IHF-A, Phono) |
| Speaker Impedance | 4 Ω - 16 Ω |
| Warranty | Australian Manufacturer Warranty |
| THX® Certification | THX® Select™ |
|---|---|
| IMAX® Enhanced | Yes |
| Dolby® Sound Technology | Dolby® Atmos™, Dolby® Atmos Height Virtualisation, Dolby® Surround |
| DTS™ Technology | DTS:X™, DTS Neural:X™ |
| Zone 2 Pre/Line Out | Yes |
|---|---|
| Zone 3 Pre/Line Out | Yes |
| Multi-Room Audio-Video Output | Powered Zone 2 Audio, Powered Zone 3 Audio, Preamplifier Zone 2 Audio, Preamplifier Zone 3 Audio, Zone B Audio |
| Main Speaker Terminals | 11 (including Zone 2) |
|---|---|
| Subwoofer Outputs | 2 |
| HDMI Inputs | 7 |
| Optical Digital Inputs | 2 |
| Composite Video Input | 2 |
| Component Video Inputs | 1 |
| Analog Inputs | 6 |
| Headphone Output | 1 |
| USB A Ports | 1 |
| LAN | Yes |
| Phono Input | Yes |
| 12V Trigger | 3 |
| IR Input/Output | 2 / 1 |
| RS232 Port | Yes |
