High-Power, Ultra-Quiet Mono Amplification for Subwoofers & Line Arrays

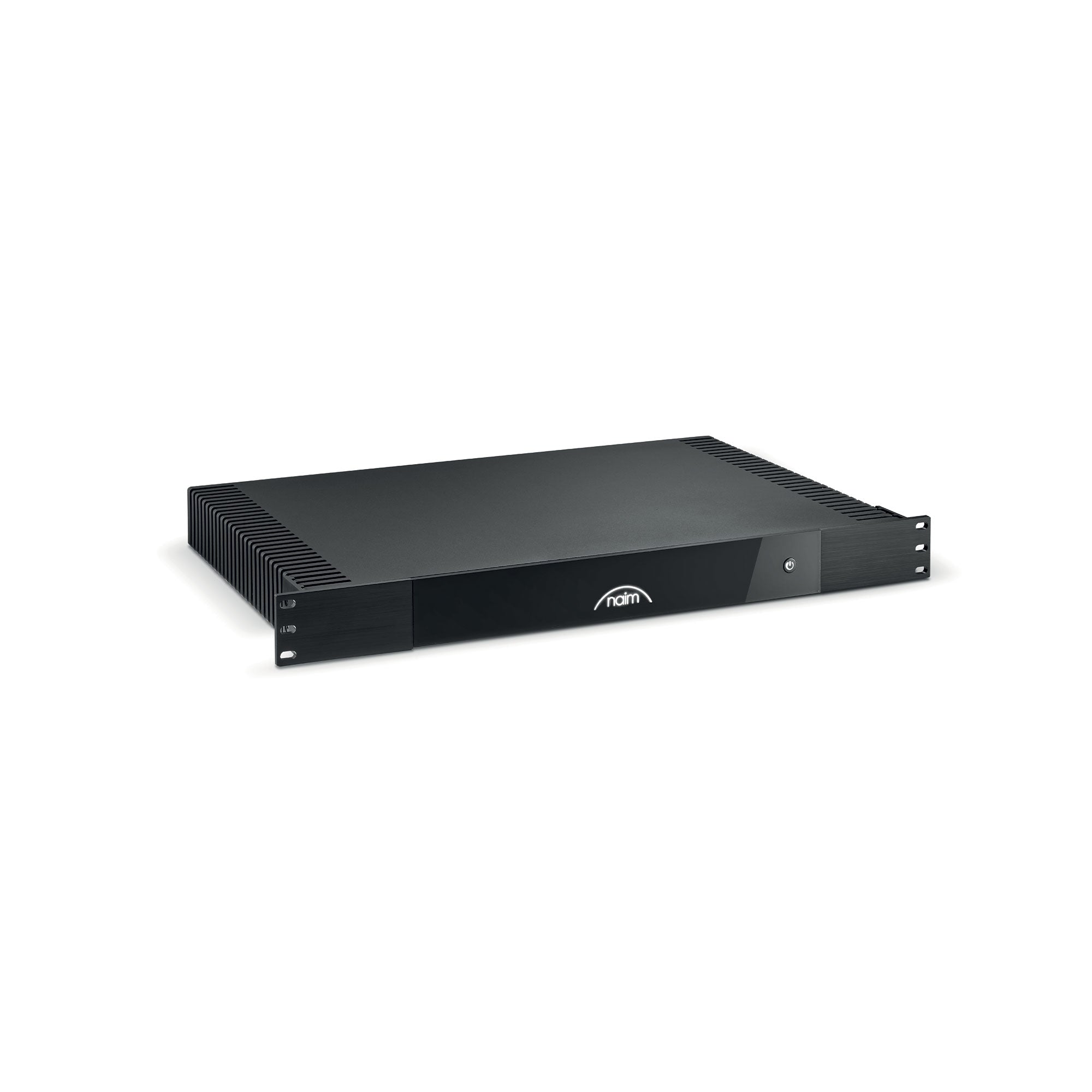

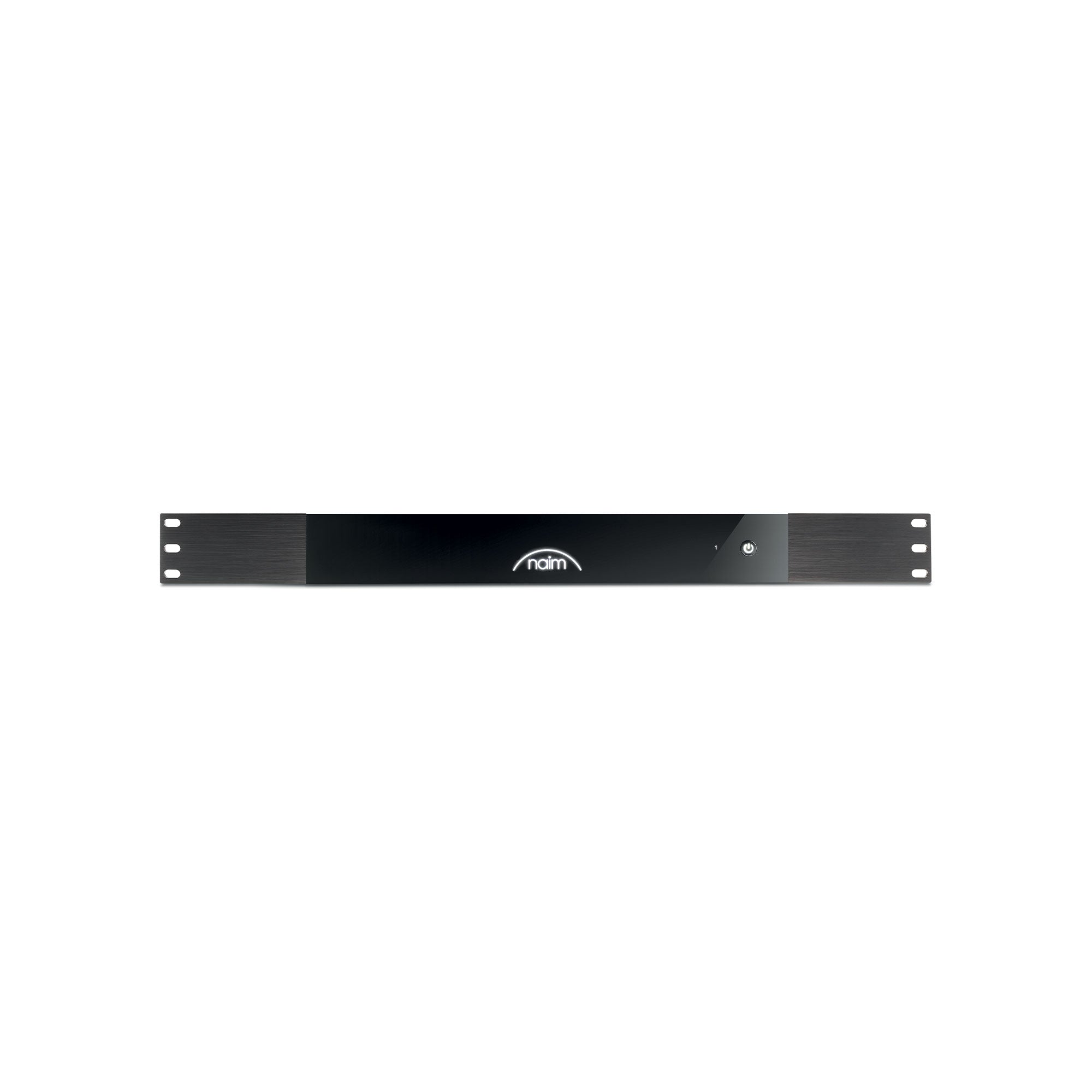

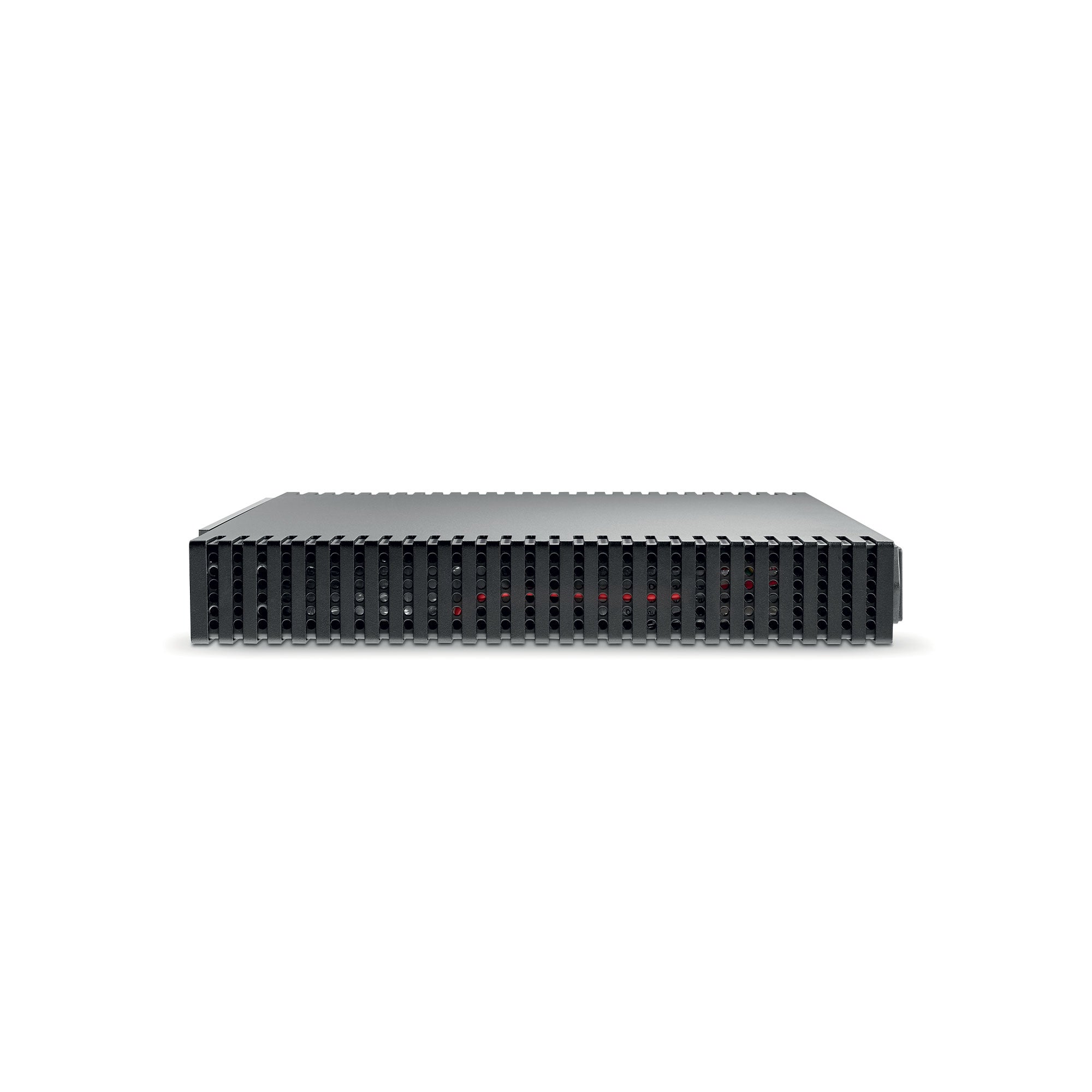

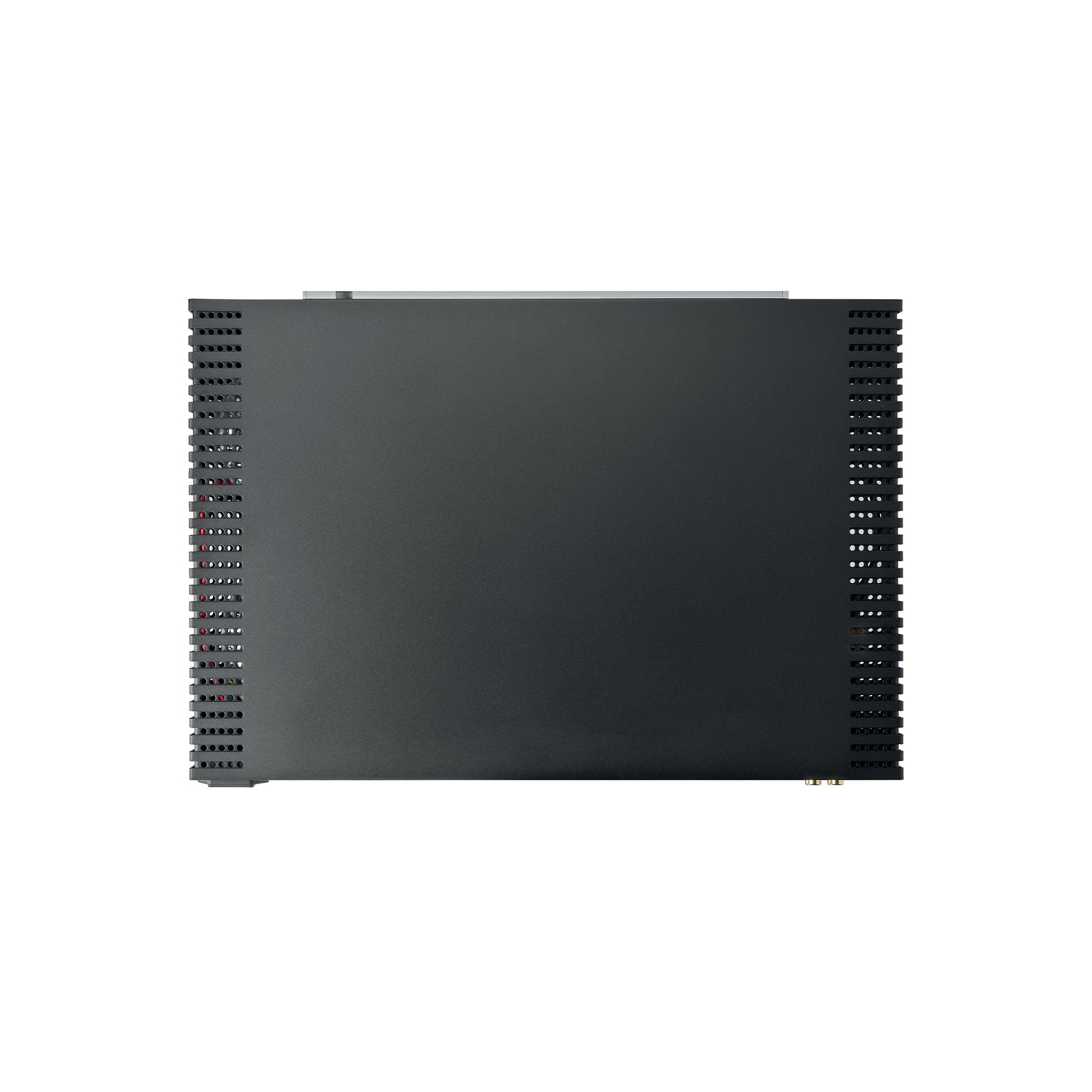

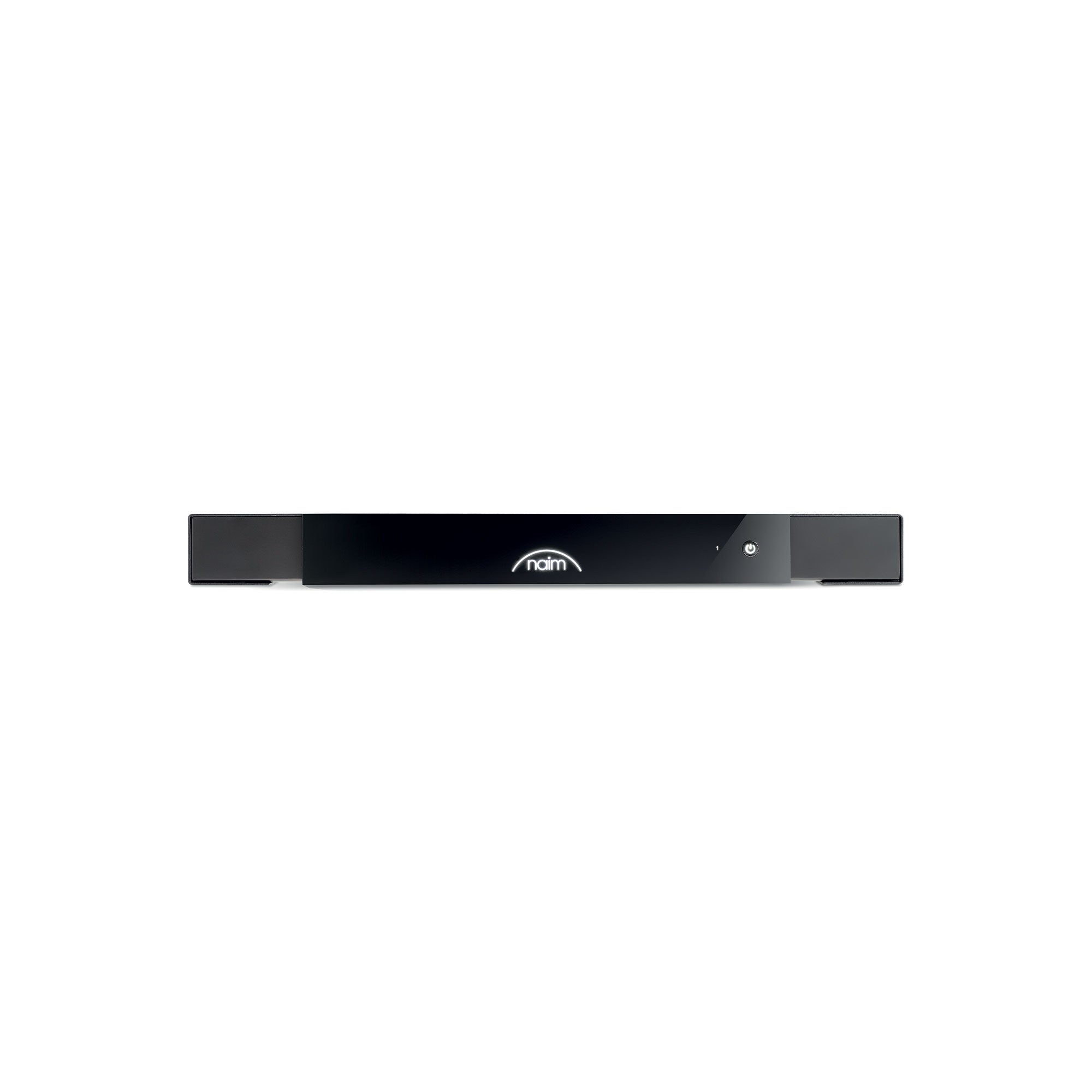

Engineered for custom residential, commercial, and high-end home theater installations, the Naim CI-NAP 101 is a high-output, 1U rack-mountable mono power amplifier. Designed to partner with the CI-Uniti 102 streamer or high-end AV processors, it provides extreme dynamic power to drive demanding low-impedance subwoofers, in-wall speakers, or commercial line-array speaker systems.

Operating down to an ultra-low load stability, the CI-NAP 101 is purpose-built to handle massive current demands such as driving high-end architectural systems like Focal's 1000 Series in-wall speakers and subwoofers.

Product Specifications

Feature	Specification
Amplifier Type	Rack-Mountable Mono Power Amplifier (1U)
Power Output ($8\,\Omega$)	500W RMS
Power Output ($4\,\Omega$)	800W RMS
Power Output ($2\,\Omega$)	810W Peak/Burst
High-Impedance Output	150W (70V) 240W (100V)
Frequency Response (-3dB)	3 Hz to 70 kHz (Low Impedance)
Total Harmonic Distortion (THD+N)	<0.008%
Signal-to-Noise Ratio (SNR)	110dB (A-weighted)
Analogue Inputs	1 x Stereo RCA Pair (Mono Summing,                   47 kΩ)

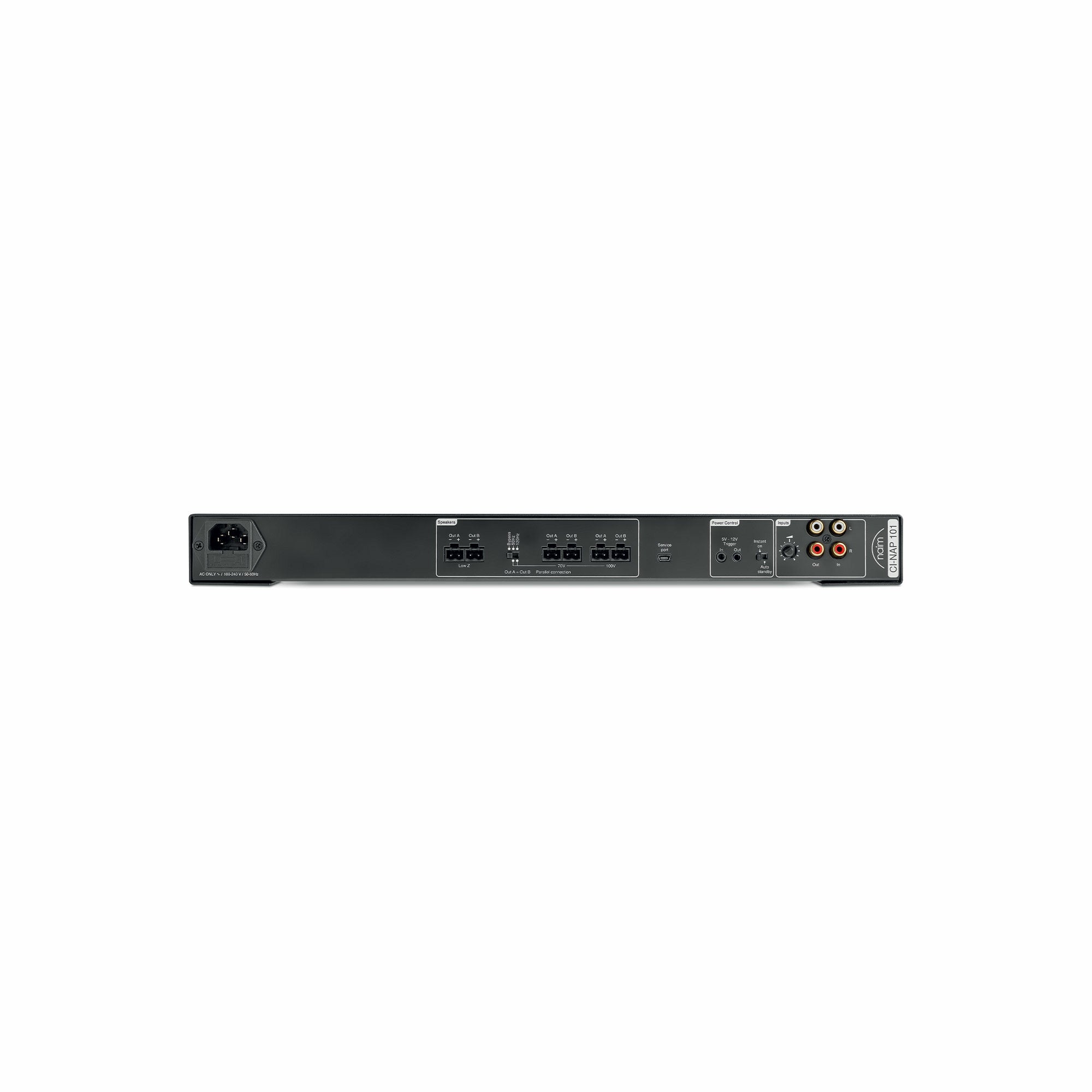

Analogue Outputs	1 x Stereo RCA Pass-Through, 2 x Euroblock Terminal Connectors
Power Consumption	100 W (Normal Use) | 0.5 W (Standby)
Dimensions ($\text{H} \times \text{W} \times \text{D}$)	4.45cm x 44.0cm x  30.0cm (1U Rack Height)
Weight	8.9 kg (19.6lbs)

What’s in the Box?

1 x Naim CI-NAP 101 Mono Power Amplifier

2 x Euroblock Speaker Terminal Connectors

1 x Rack-Mounting Hardware & Ears Kit

1 x Regional Mains Power Cable

Quick Start Guide & Safety Documentation
