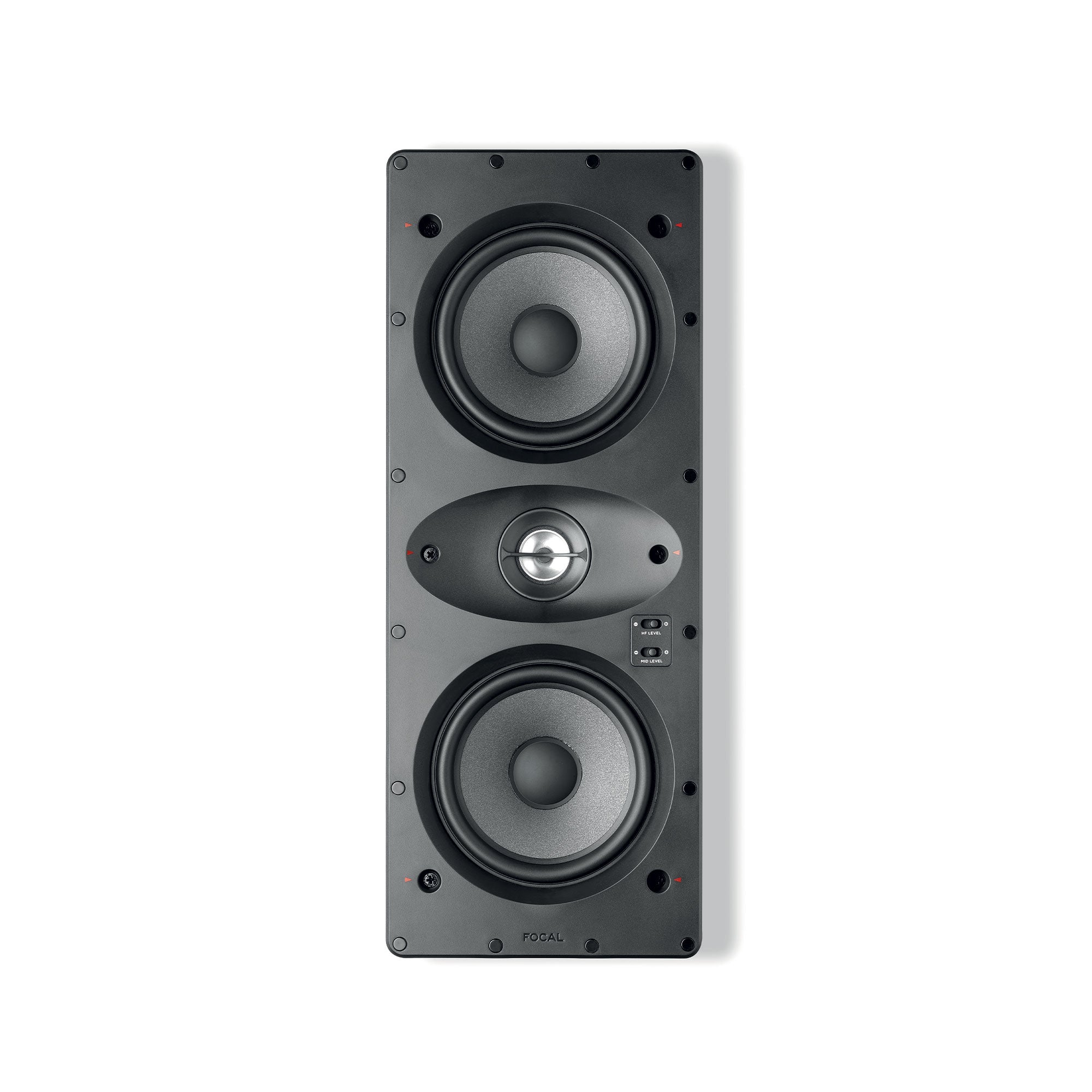

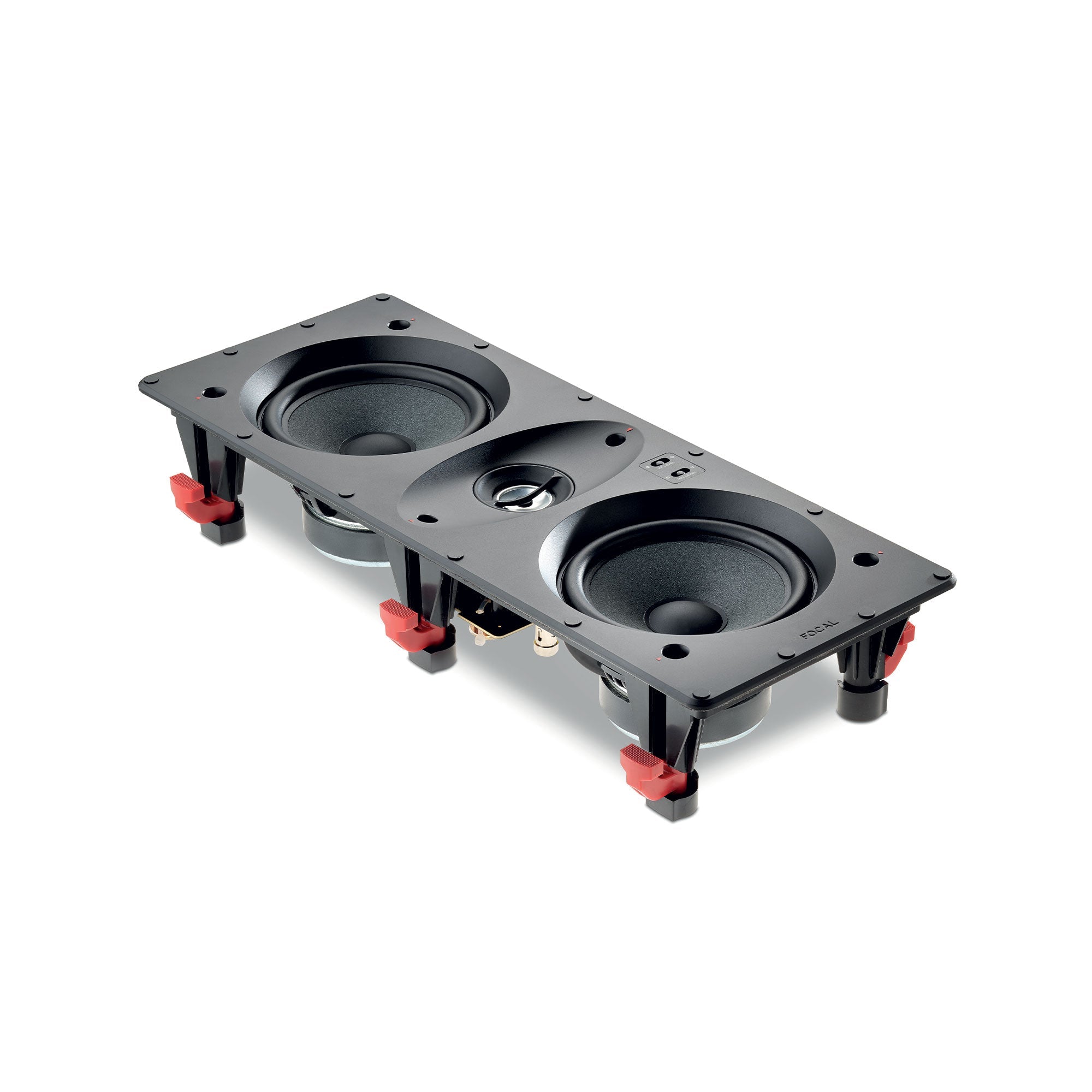

Thanks to its sound performance and compactness, this LCR (left, center, right) integrated speaker is the perfect complement for home theater use, but is also compatible with any room in the house. Its Appolito configuration, with the tweeter placed between two bass-midrange drivers, ensures high power handling and better directivity control.

PRECISE ACOUSTICS

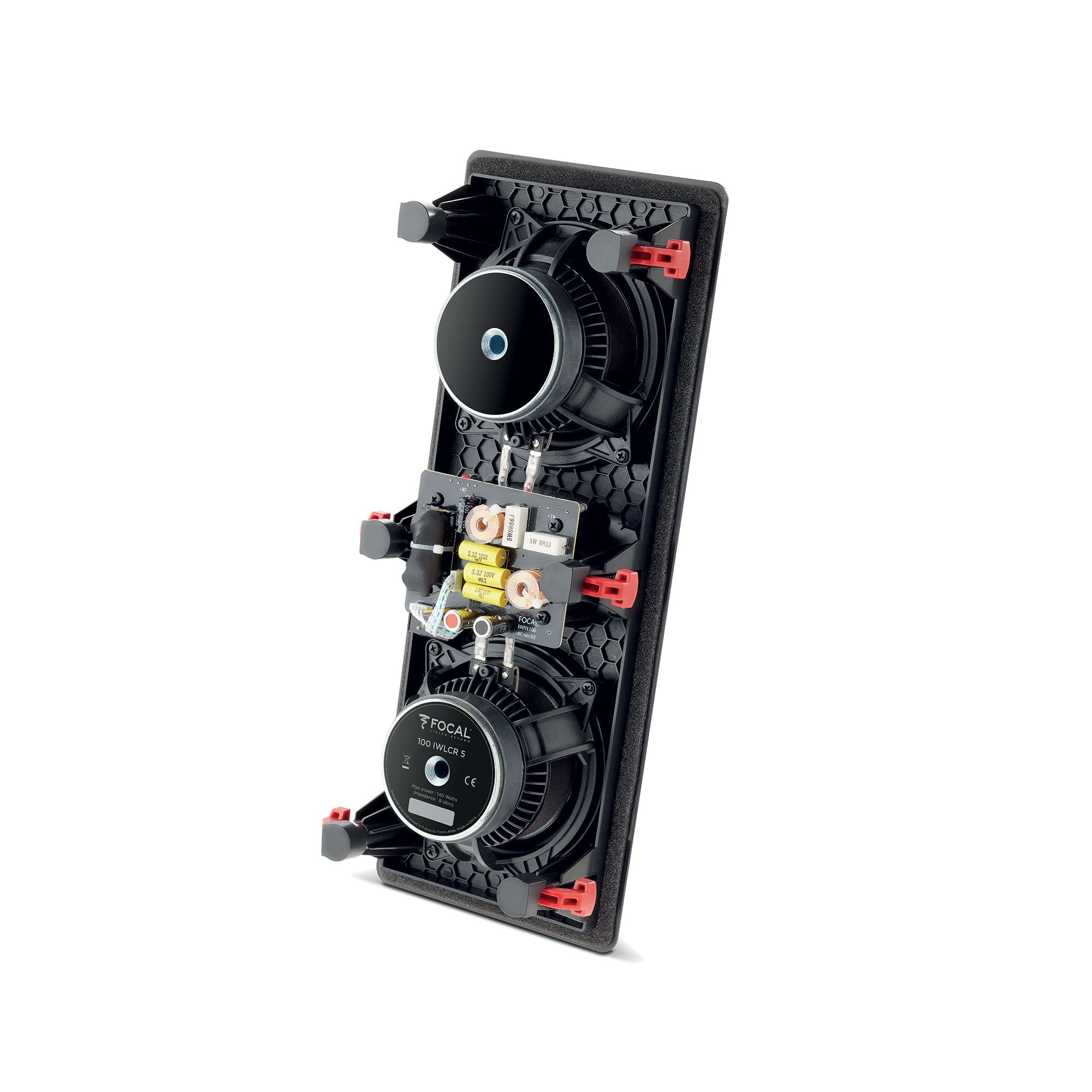

100 IWLCR5 features an adjustable inverted dome tweeter. Its 13 cm loudspeakers feature Polyglass diaphragms for excellent damping and well-defined midrange. Correctors are used to equalize high and mid frequencies, for an ever more appropriate acoustic response.

POLYVALENCE

The loudspeaker can be used horizontally for Home Cinema installations. A three-position switch allows you to define the left, center or right function, to guarantee identical tonal balance at the listening point.

DESIGN AND DISCRETION

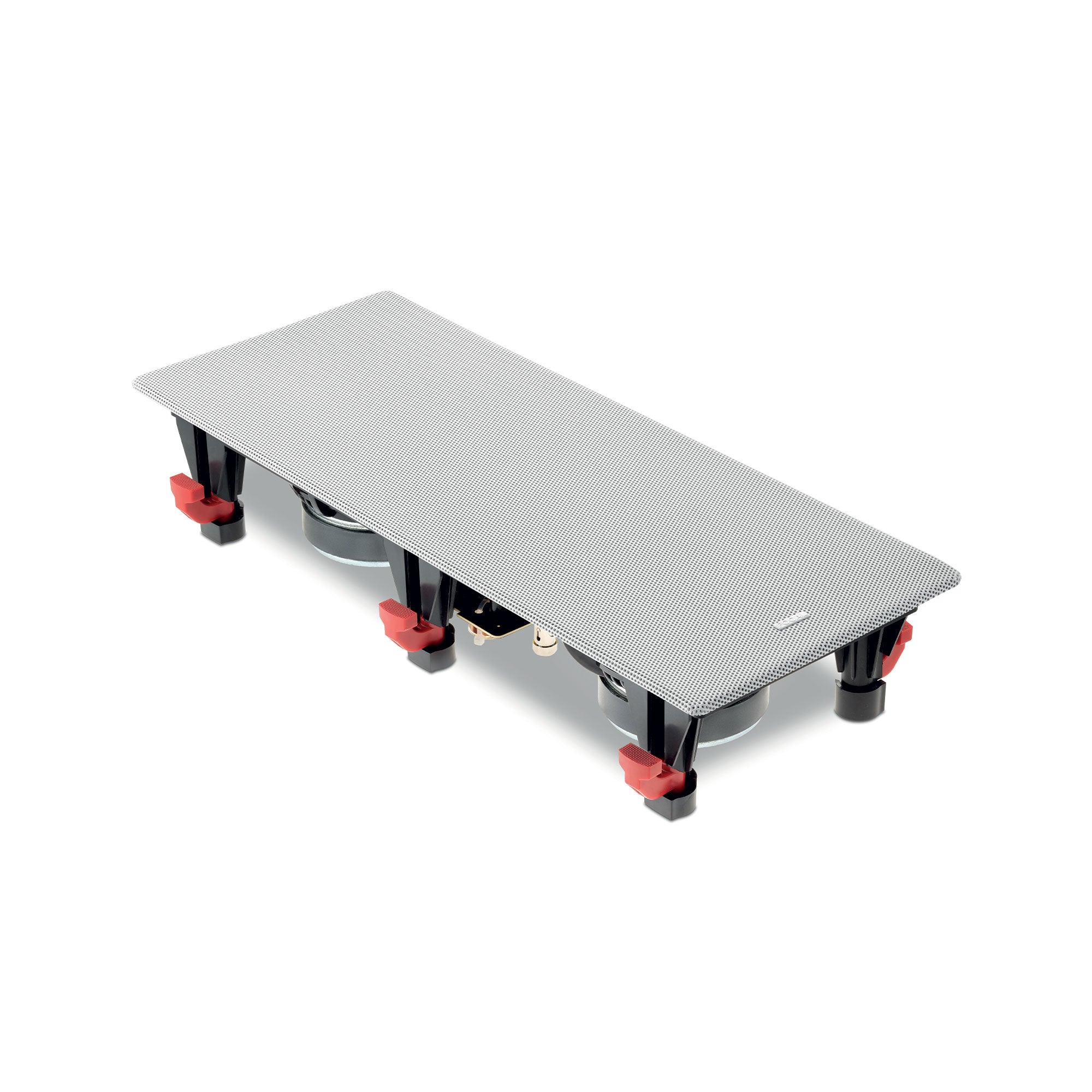

Thanks to its shallow depth and ready-to-paint magnetic grille, 100 IWLCR5 will fit in anywhere, easily and discreetly.

SPECIFICATIONS

Design

Height : 86 mm / 3.37 in
Width : 440 mm / 17.31 in
Depth : 173 mm / 6.81 in
Weight : 2.9 kg /
Minimum allowable ceiling thickness : 8 mm / 0.3125 in
Maximum allowable ceiling thickness : 35 mm / 1.37 in
Depth behind surface (Mounting depth) : 3.25 in / 3.25 in

Sound - Acoustics

Product type : 2-way Appolito wall
Membrane : Polyglass
Medium : 2x5" (13cm) Polyglass Midbass
Response at - 6dB (Low frequency point) : 43 Hz
Frequency response (+/- 3dB) : 55 Hz - 23 kHz
Minimum impedance : 3.8 Ω
Nominal Impedance : 8 Ω
Recommended amplifier power : 25 - 120 W
Sensitivity : 90.5 dB

Included Accessories

Black and white felt : Black and white felt ready to stick
Cut Out template : Yes
Grilles : Ready-to-paint grille
