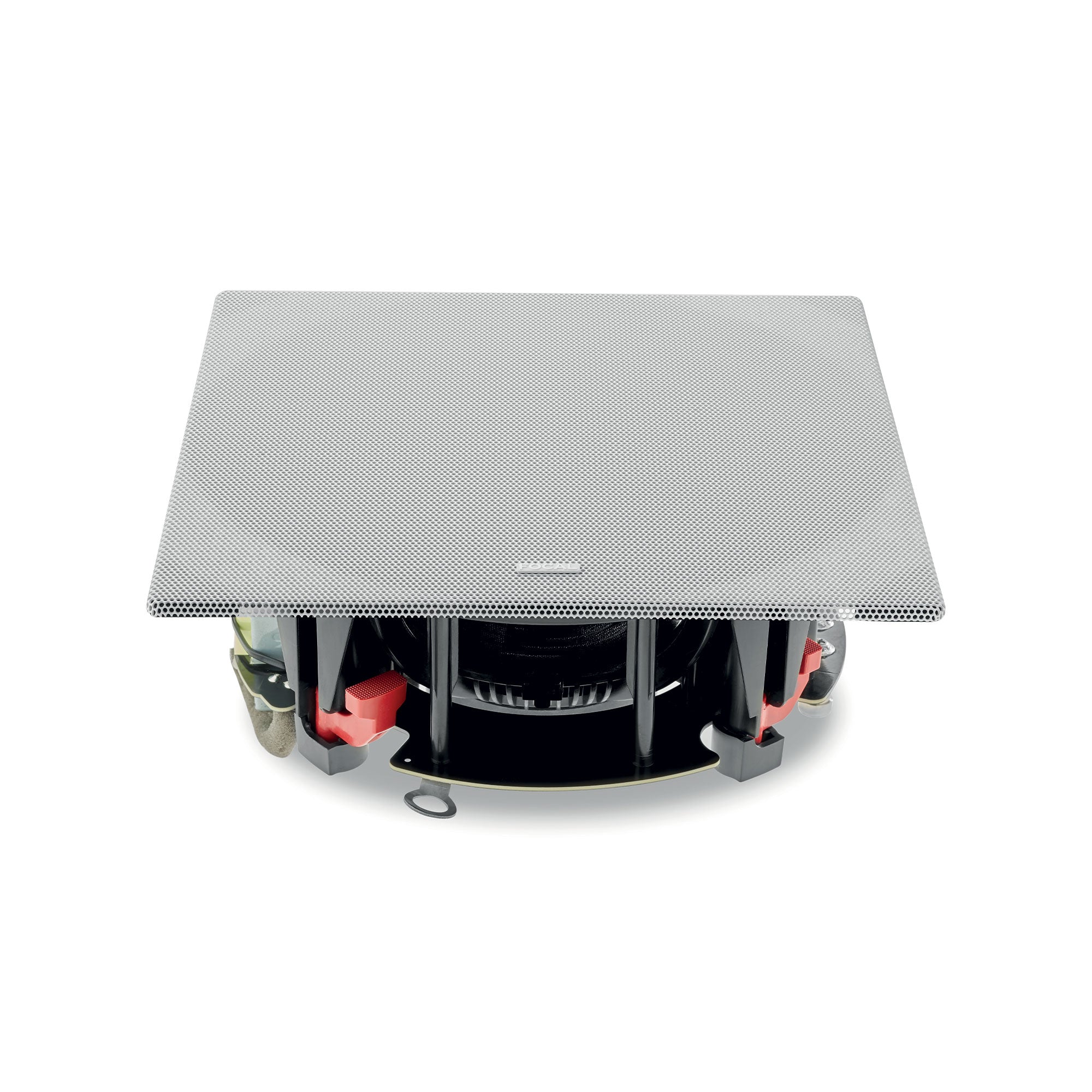

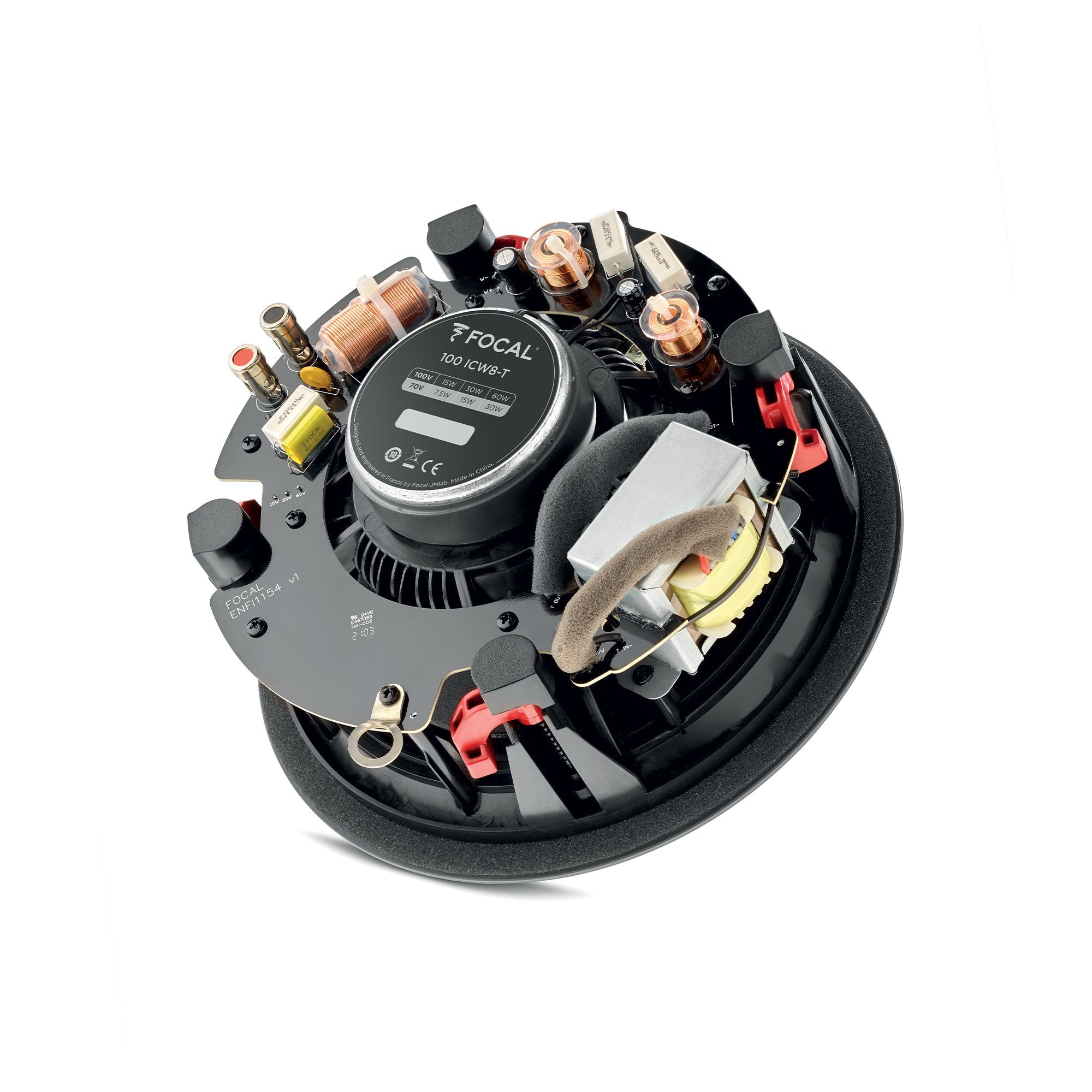

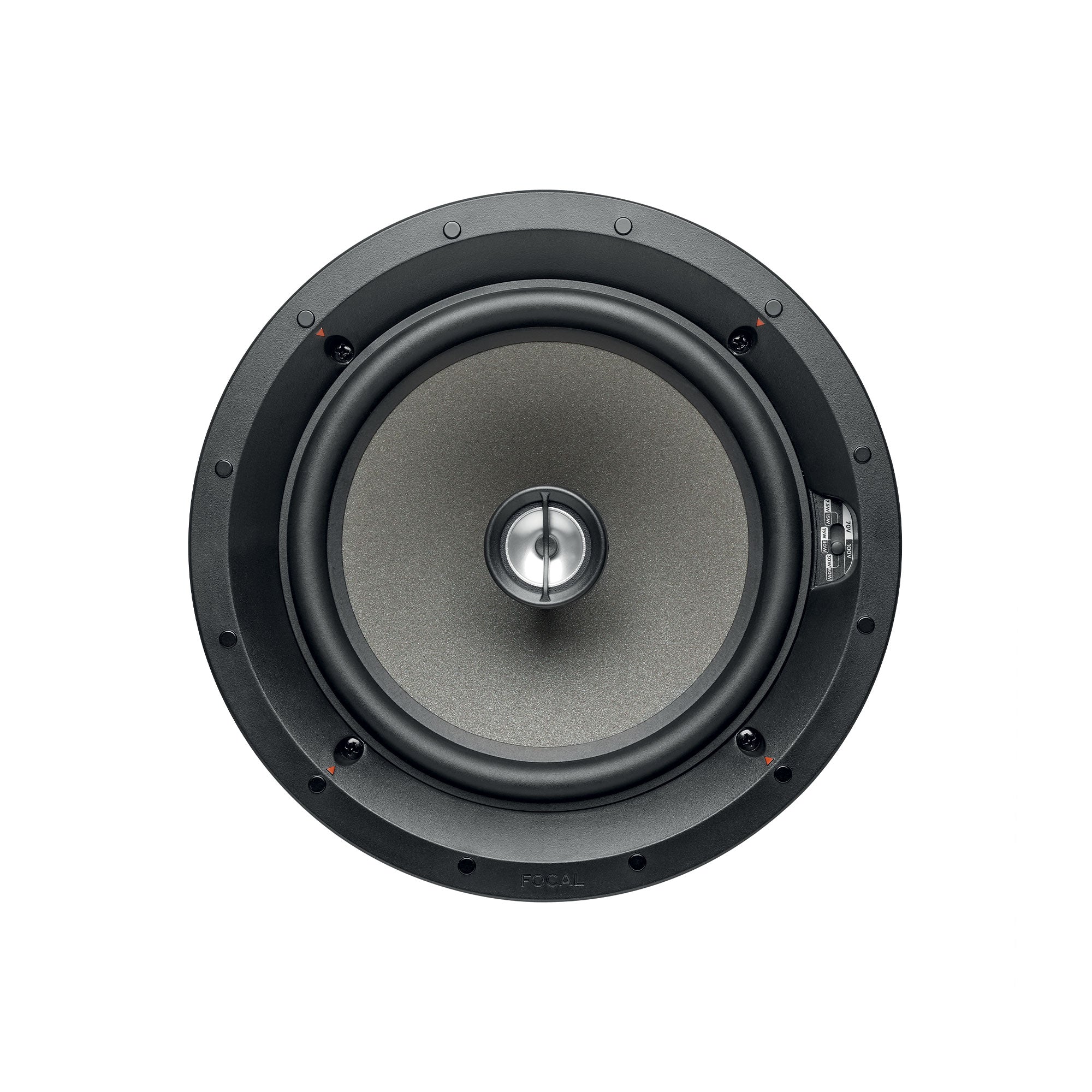

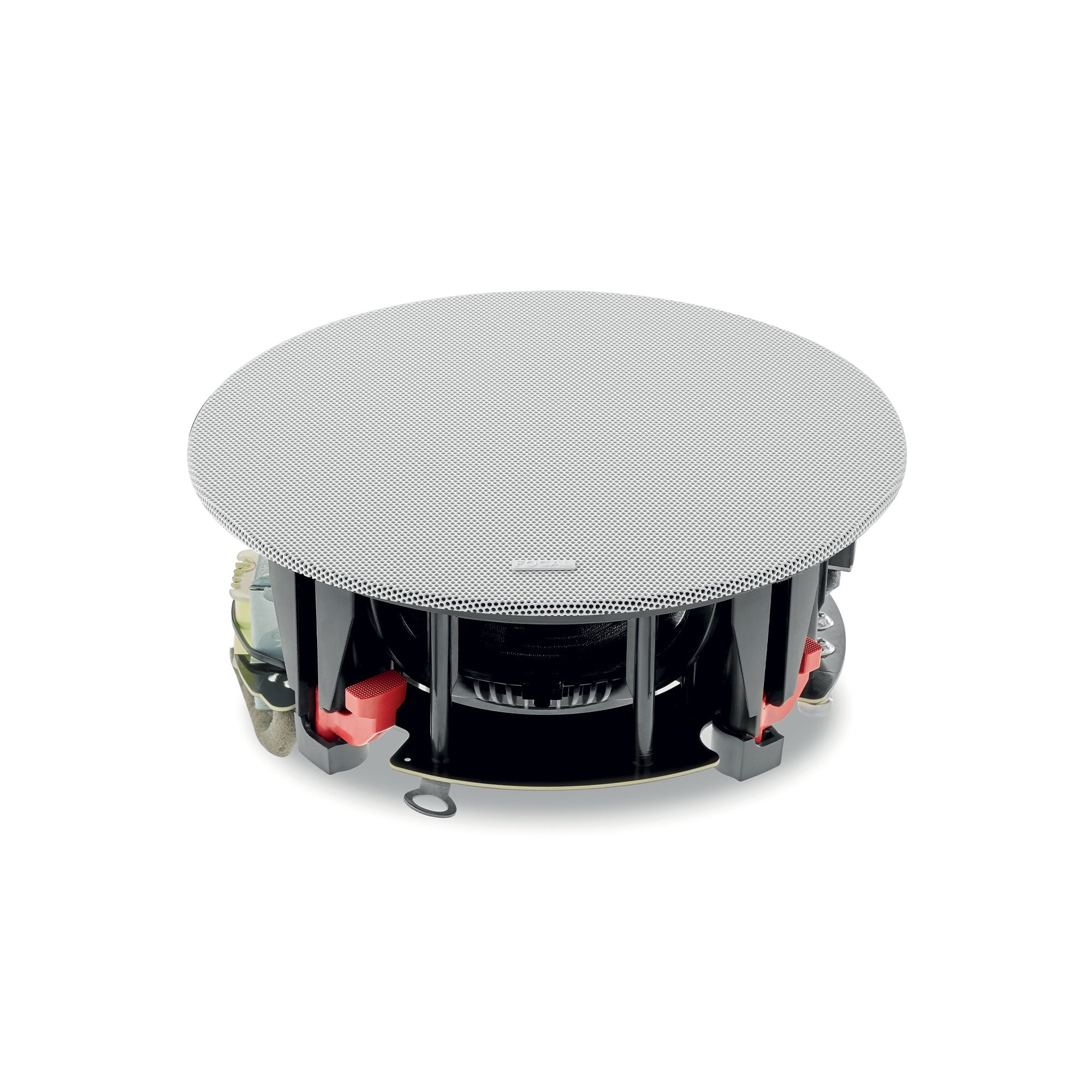

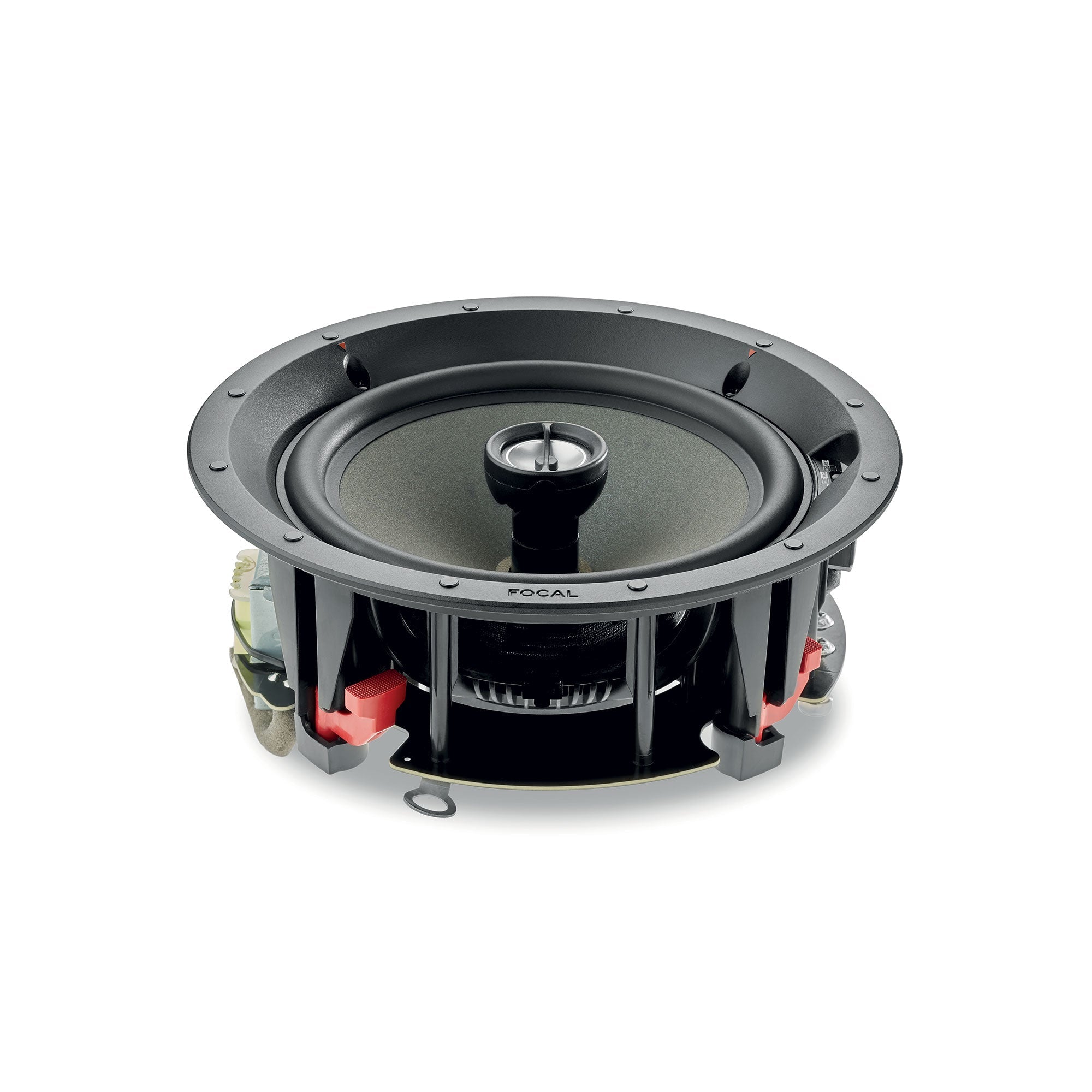

100 ICW8-T is a wall and ceiling loudspeaker designed for large public spaces (hotels, restaurants, shops...). Its 21 cm driver features Polyglass technology for a natural, rich sound, and its low directivity eliminates the "shower effect" of sound for a homogeneous musicality in the space. Like all products in the 100-T Series line, it incorporates an adjustable transformer to adapt its power to 70/100 volt installations.

VAST SPACES

An adjustable transformer adapts the loudspeaker's power output, allowing it to be daisy-chained to other loudspeakers in an installation. Clarity and vocal intelligibility are guaranteed in large listening spaces, while minimizing the number of amplification channels.

FOCAL KNOW-HOW

The Polyglass diaphragm of the 21 cm loudspeaker delivers a natural, uncolored midrange and rich bass. It is combined with an aluminum inverted dome tweeter for silky treble and optimum sound dispersion.

COMPACT AND DISCREET

Compactness and shallow integration depth are the hallmarks of these In-ceiling loudspeakers. Discreet and easy to install, they come with optimized grip mounting brackets and ready-to-paint round or square grilles.

SPECIFICATIONS

Design

Depth : 111 mm / 4.37 in
Minimum allowable ceiling thickness : 8 mm / 0.3125 in
Maximum allowable ceiling thickness : 40 mm / 1.56 in
Cut-Out diameter : 224 mm / 8.81 in
Depth behind surface (Mounting depth) : 4.25 in / 4.25 in

Sound - Acoustics

Product type : Wall / Ceiling - 2 Coxial channels for installation on line 70V / 100V
Membrane : Polyglass
Medium : 8" (21cm) Polyglass Midbass
Response at - 6dB (Low frequency point) : 40 Hz
Frequency response (+/- 3dB) :
53 Hz - 23 kHz
Sensitivity : 90 dB

Included Accessories

Cut Out template : Yes
Grilles : Ready-to-paint grille
Sling : Yes
