This in-ceiling speaker features an adjustable transformer capable of covering large listening areas with intelligibility and clarity of sound. It is ideal for large spaces such as shopping centres, boutiques, hotels and restaurants. Its UL fireproof certifications make it a perfectly safe product. Thanks to its Focal technologies and design for easy installation, 100 IC8-T UL is both musical and discreet. Make way for the pleasure of listening.

FOR WIDE-OPEN SPACES

Like the other loudspeakers in the 100 Series range, the 100 IC8-T UL is fitted with a transformer that allows its power to be adjusted and combined with others in an 8 ohm or 70V/100V installation. It covers vast listening areas while reducing the number of amplification channels required.

QUALITY & RELIABILITY

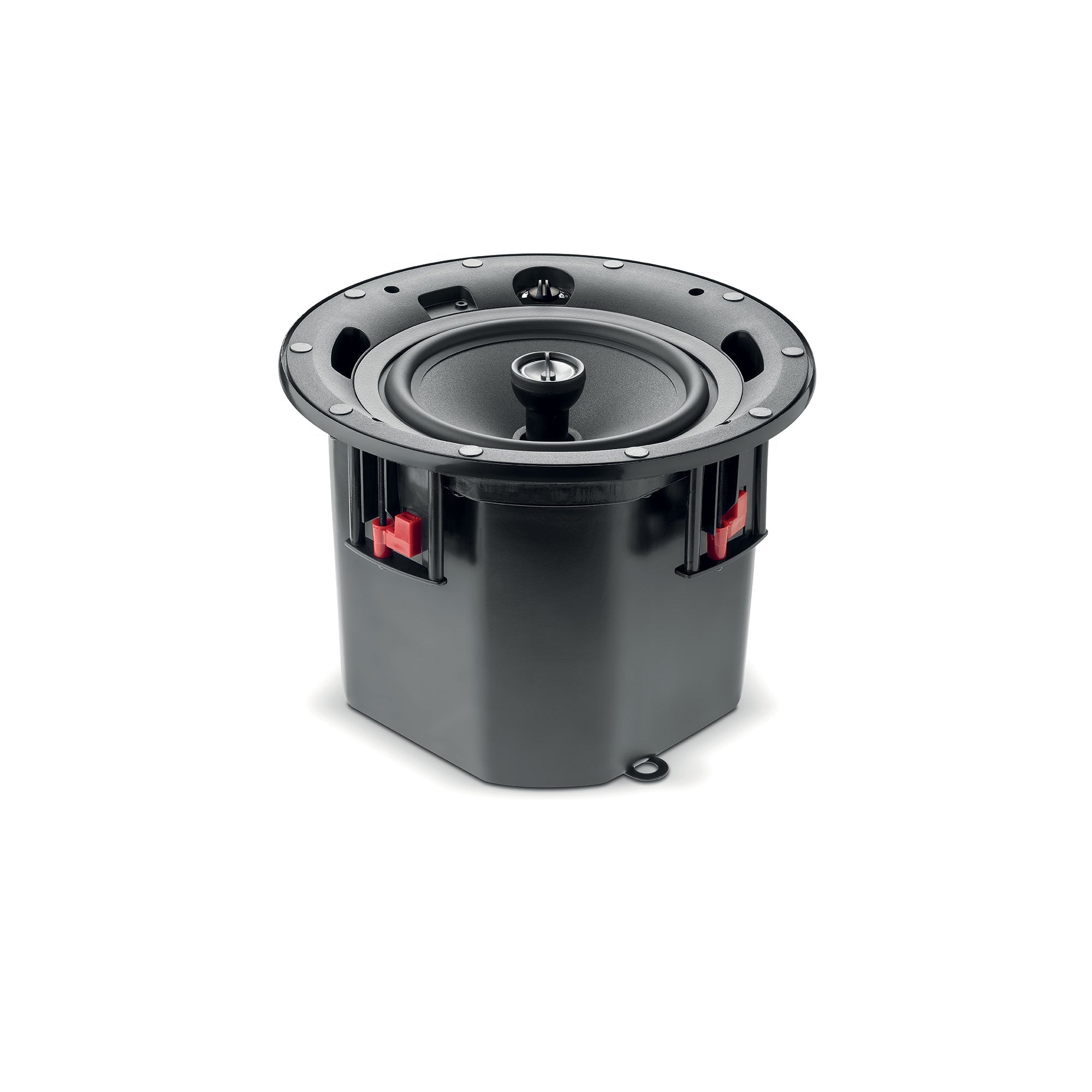

The loudspeaker is certified to UL 1480, a standard meeting safety measures for fire alarm systems, and UL 2043, assessing resistance to flames and smoke emissions. It is easy to install, thanks to its optimized grip mounting brackets. An optional C-Ring Tile Bridge false ceiling mounting kit further enhances the safety, strength and reliability of the installation.

FOCAL TECHNOLOGIES

Thanks to the loudspeaker's 21 cm (8") Polyglass membrane, the midrange is natural and uncolored, and the bass rich. Another Focal technology, the aluminum inverted dome tweeter, ensures wide sound dispersion and enhanced spatialization. The loudspeaker has been developed to work perfectly with Naim CI Series electronics, ensuring optimum technical and sound compatibility in a Focal & Naim ecosystem.

SPECIFICATIONS

Design

Height : 29.7 cm /
Width : 29.7 cm /
Depth : 22.5 cm /
Weight : 4.75 kg /
Net weight (with grille) : 3.75 kg /
Minimum allowable ceiling thickness : 0 cm /
Maximum allowable ceiling thickness : 3.6 cm /
Easy Quick Install : No
Cut-Out diameter : 26.5 cm /
Depth behind surface (Mounting depth) : 21.2 cm /
Packaging Depth : 29 cm /
Packaging height : 37 cm /
Packaging Width : 37 cm /
Weight with the packaging : 6.15 g /
Product certifications : UL1480 & UL2043

Sound - Acoustics

Product type : Ceiling - 2 coxial stereo lanes
Response at - 6dB (Low frequency point) : 48 Hz
Nominal Impedance : 8 Ω
Sensitivity : 91 dB
Power in 100 V : Yes
Power in 70 V : Yes

Included Accessories

Cut Out template : Yes
Sling : Yes
