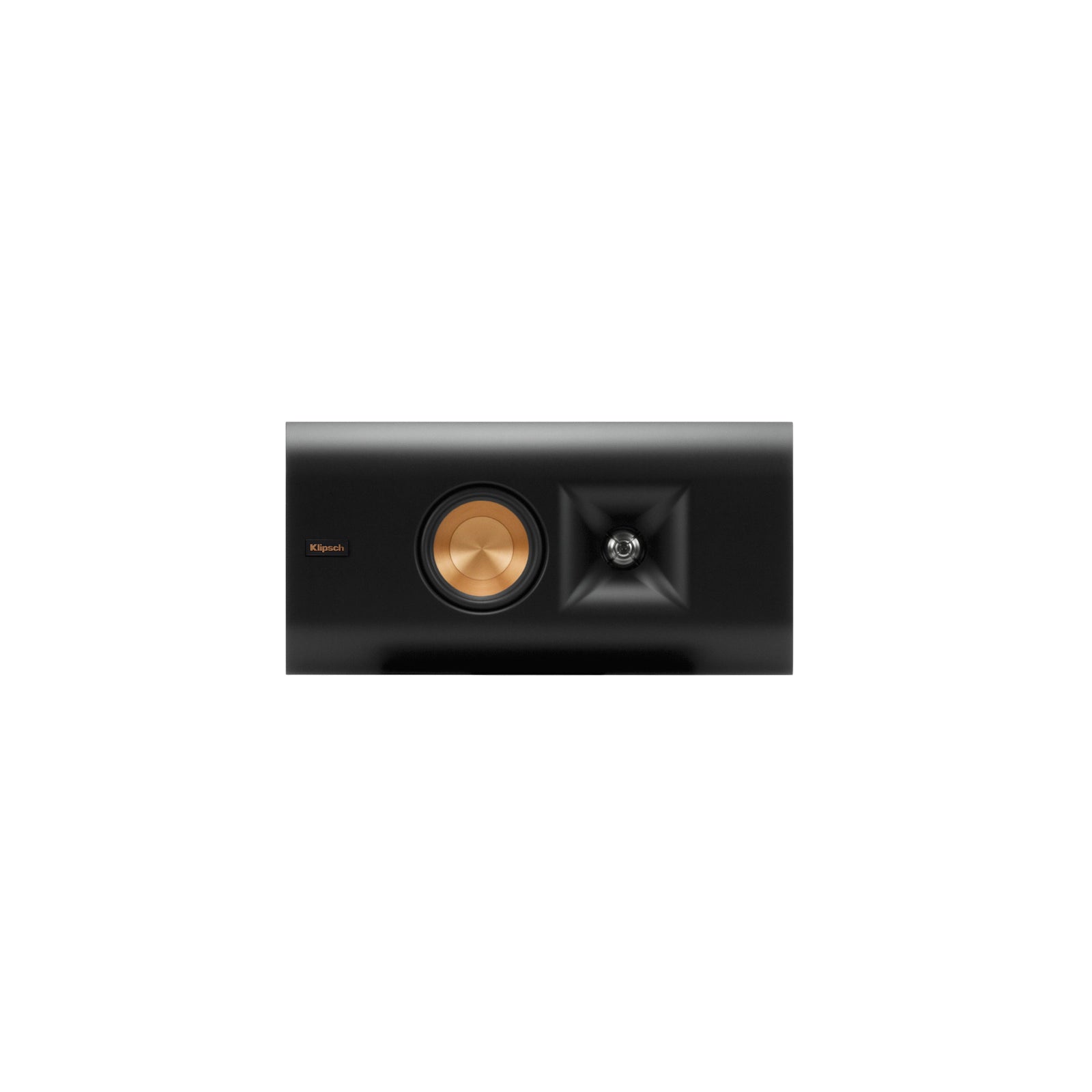

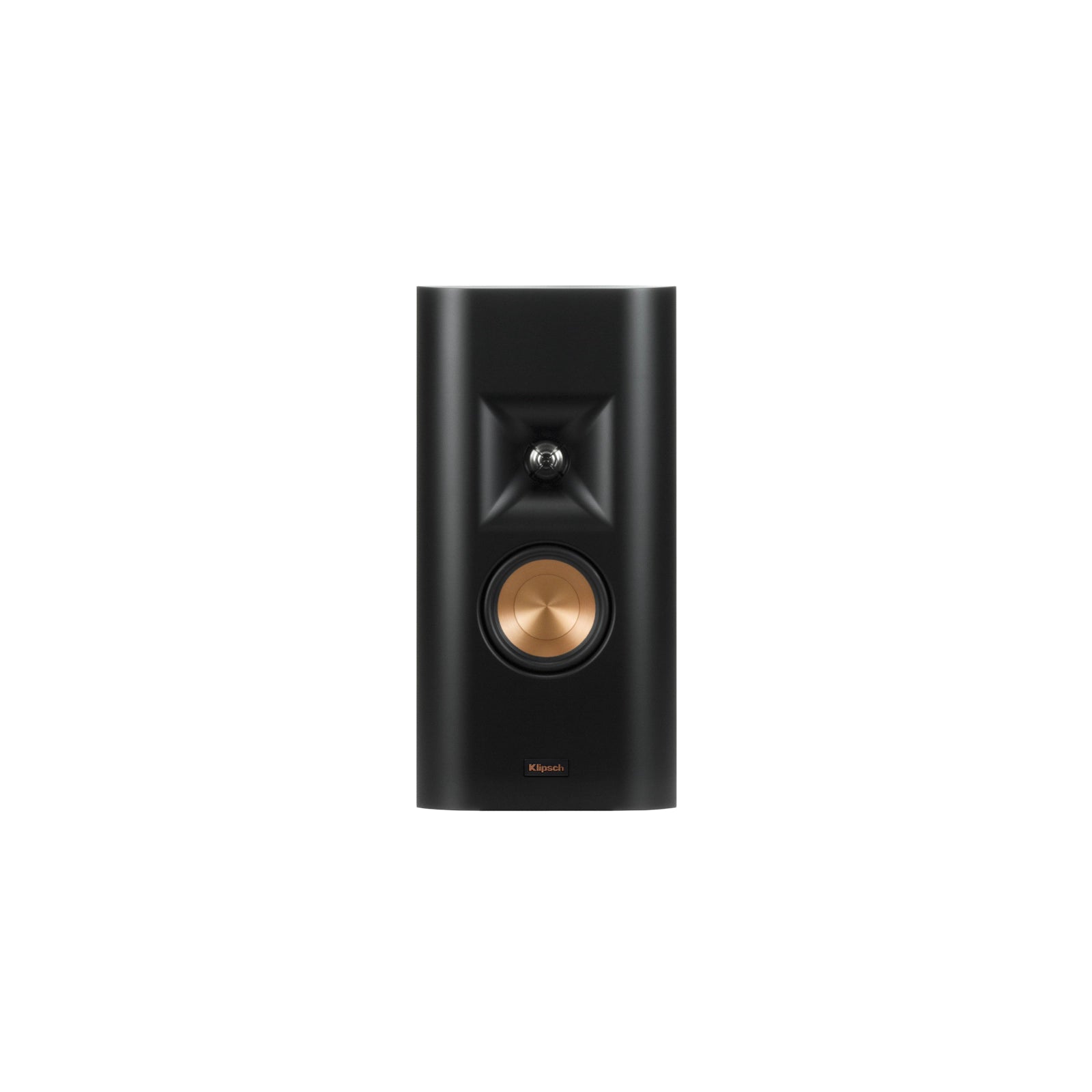

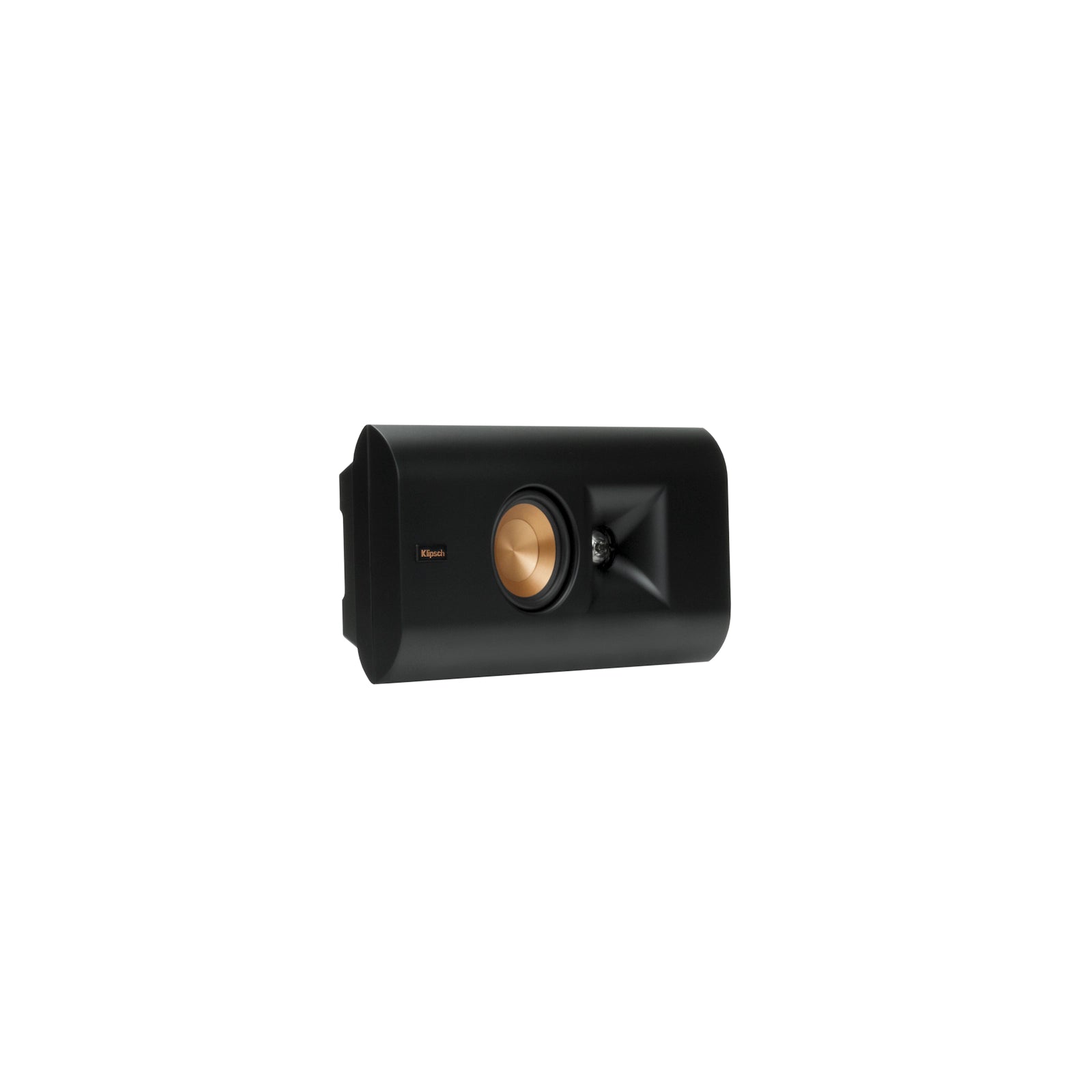

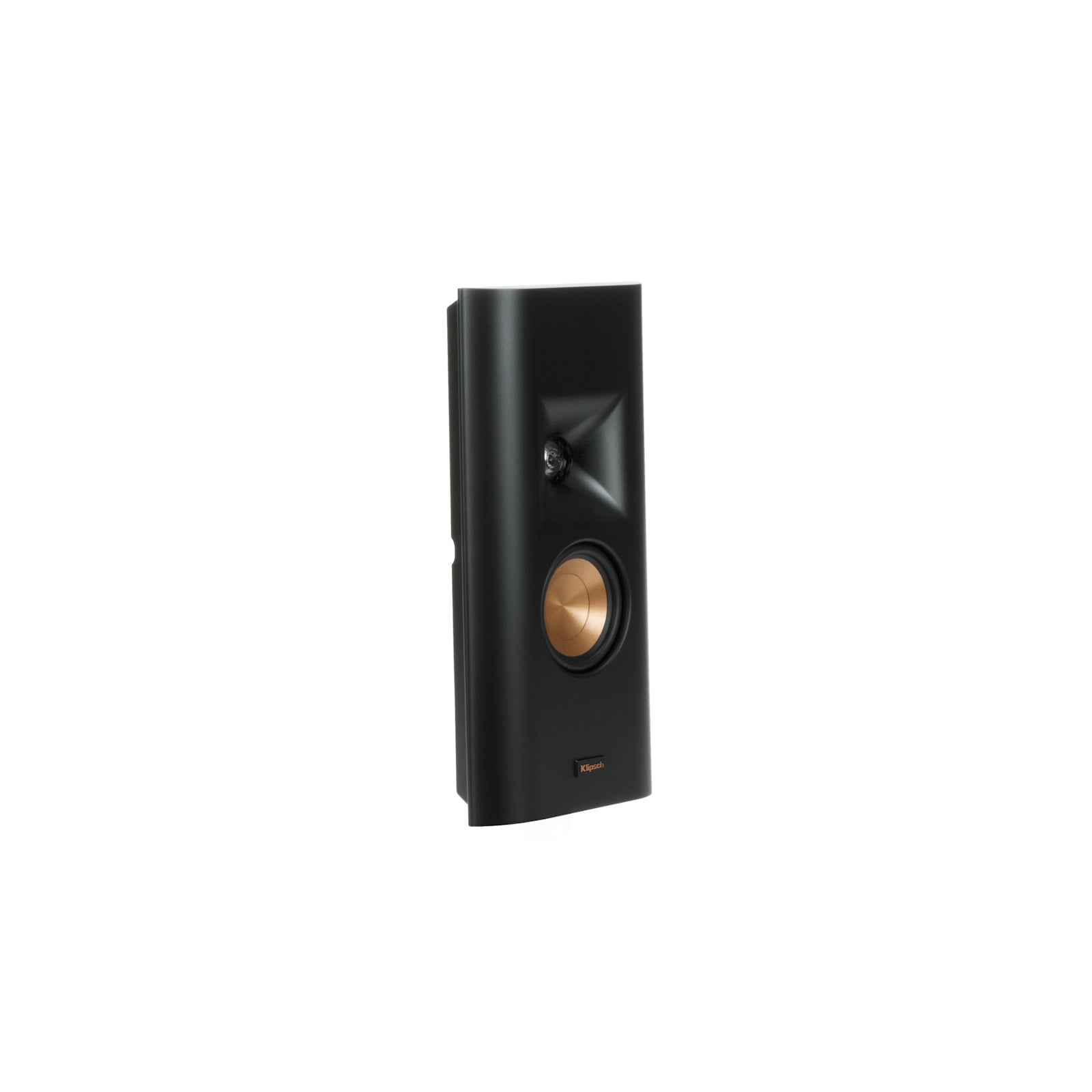

The Reference Premiere Designer On-Wall RP-140D brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. Featuring a 3.5” Cerametallic™ woofer and 1” Titanium Dome Linear Travel Suspension (LTS) tweeter, this on-wall speakers offers flexible placement for front LCR, or side/rear surrounds.

MODERN LOOK. LEGENDARY SOUND.

The Reference Premiere Designer On-Wall family brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. The matte finish helps it blend more seamlessly with contemporary interiors and electronics, making it a great sounding, great looking solution in a high performance home theater or media room where floor space is at a premium.

90x90 TRACTRIX HORN

The Tractrix® horn geometry helps to improve high-frequency response and extension, while enhancing imaging and dynamics. It also focuses the high frequency sounds towards the listening area, for the cleanest, most natural sound possible.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM TWEETER

The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

SPUN COPPER CERAMETALLIC WOOFERS

Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.

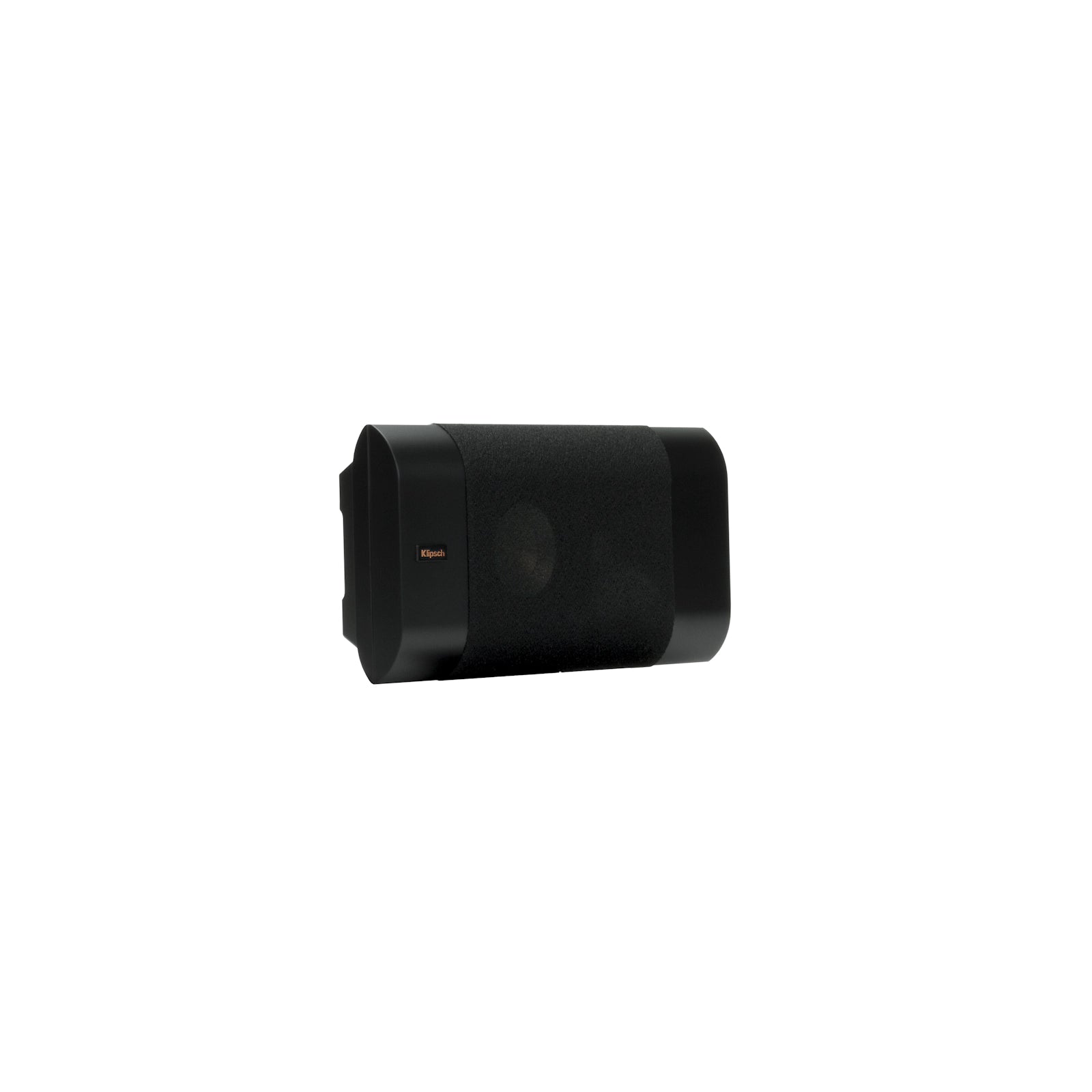

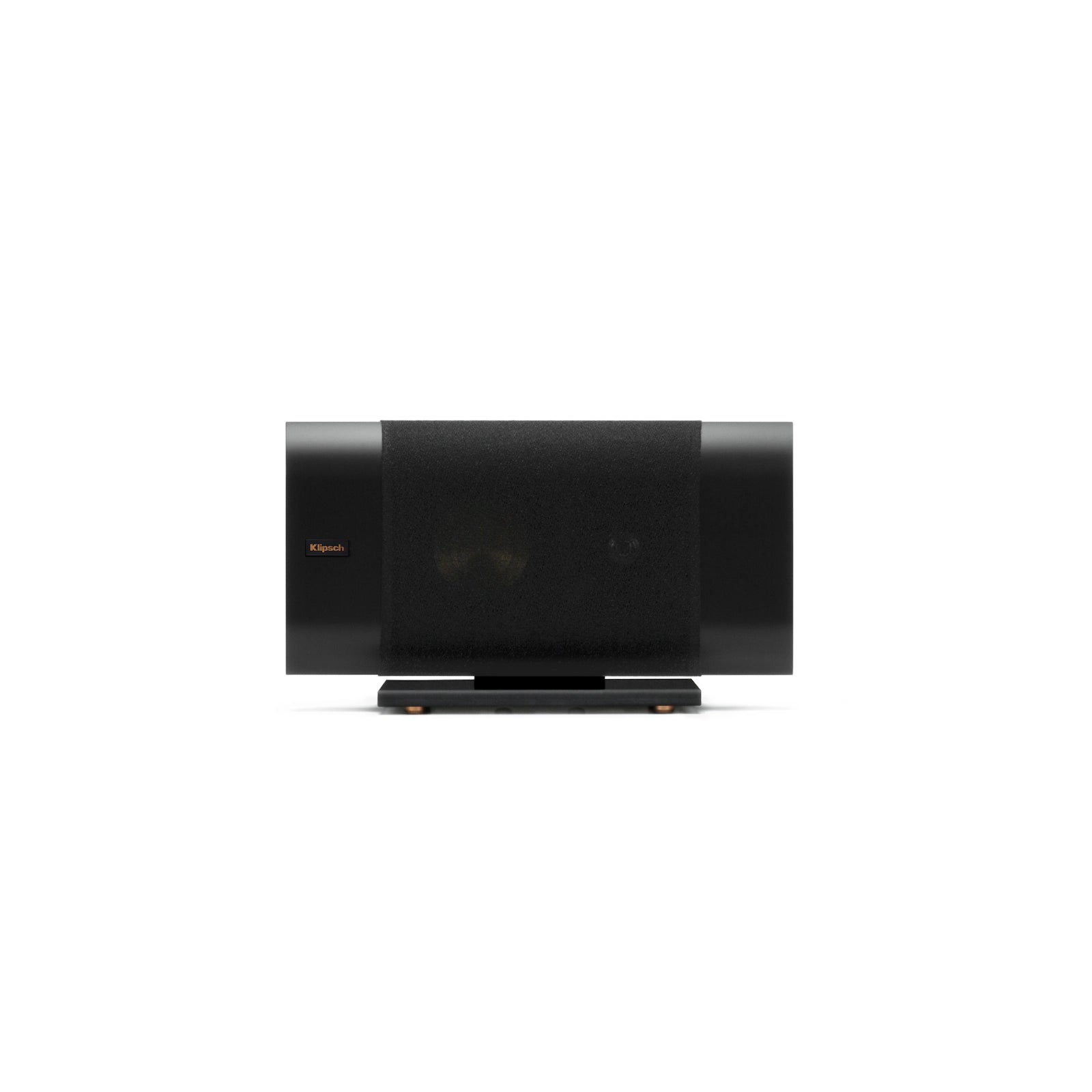

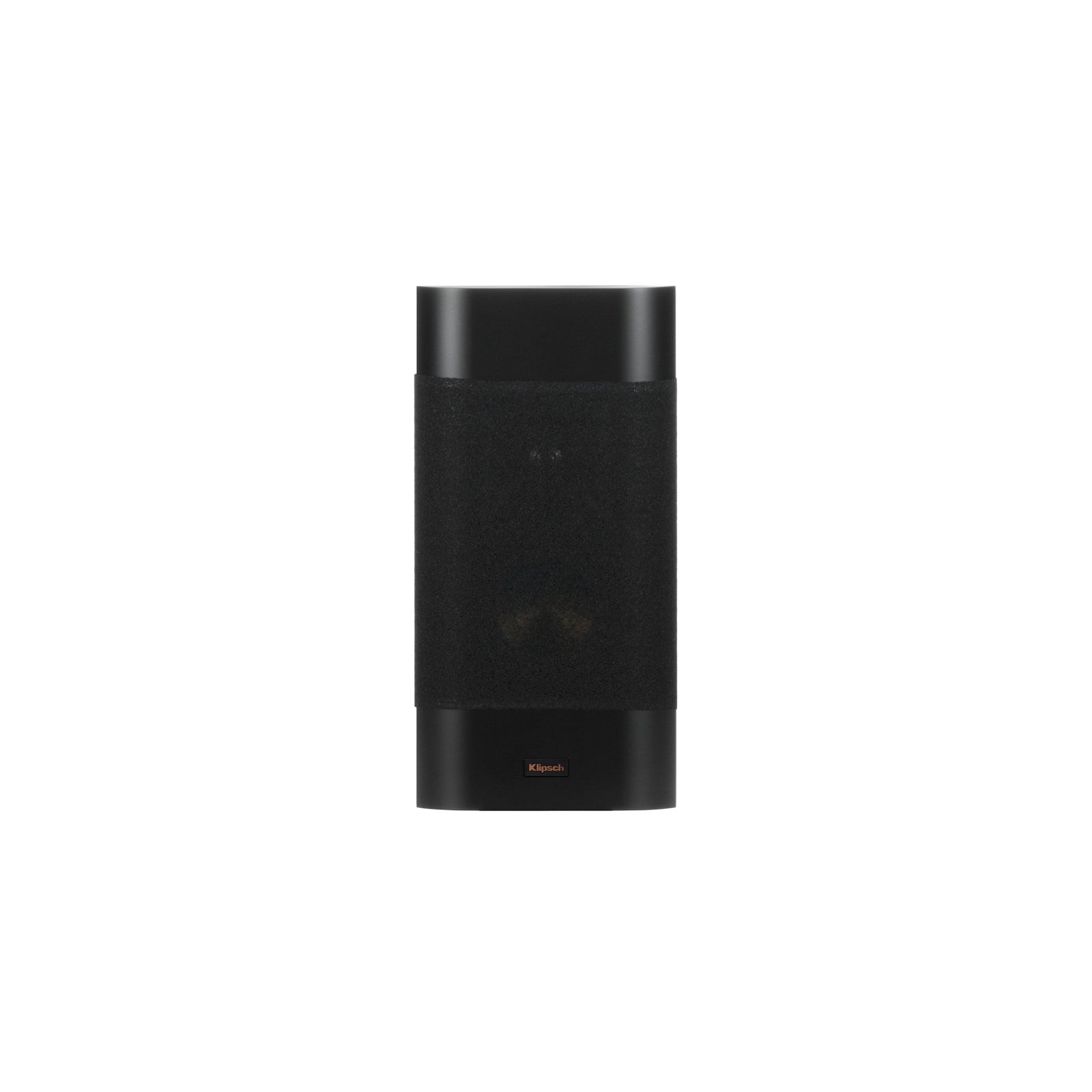

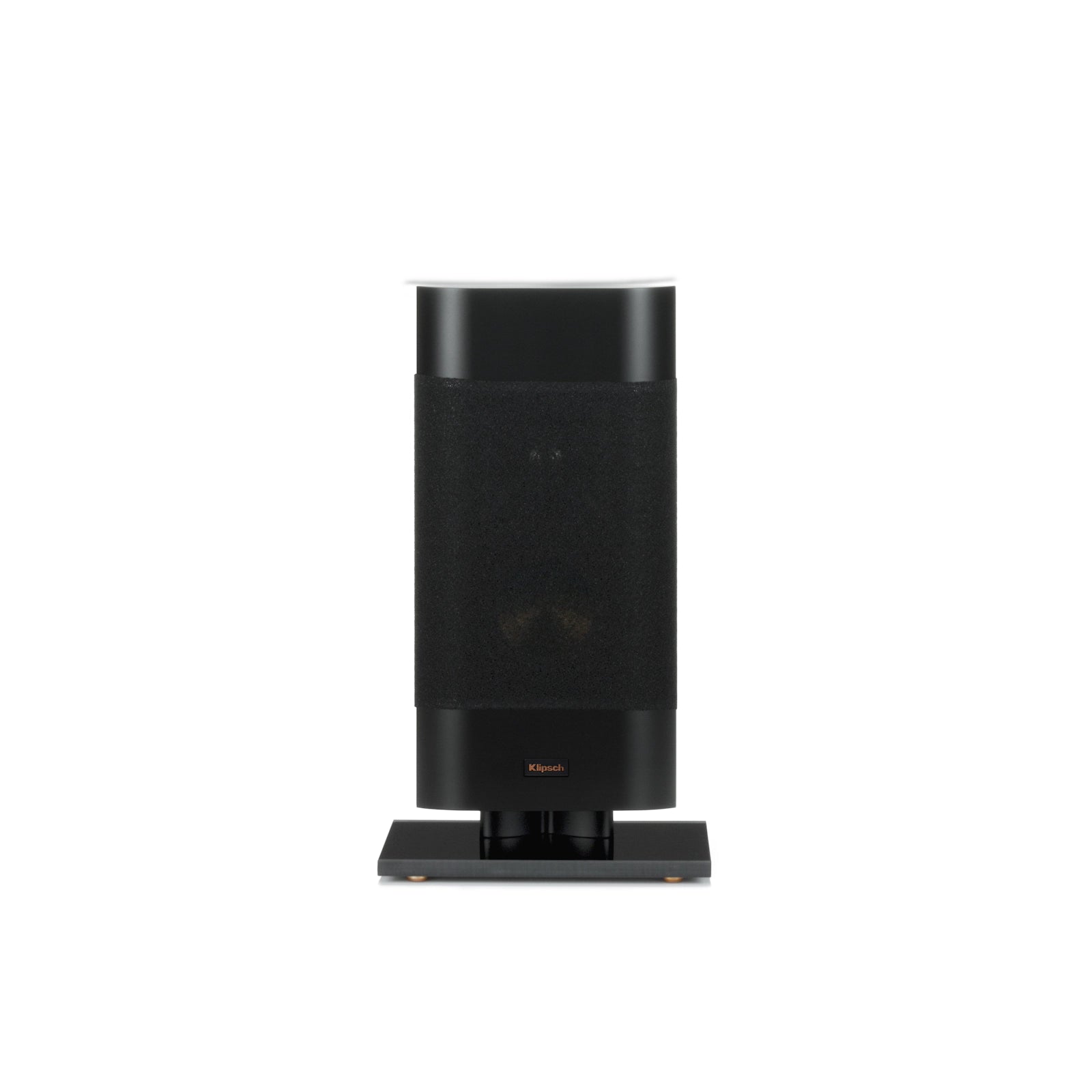

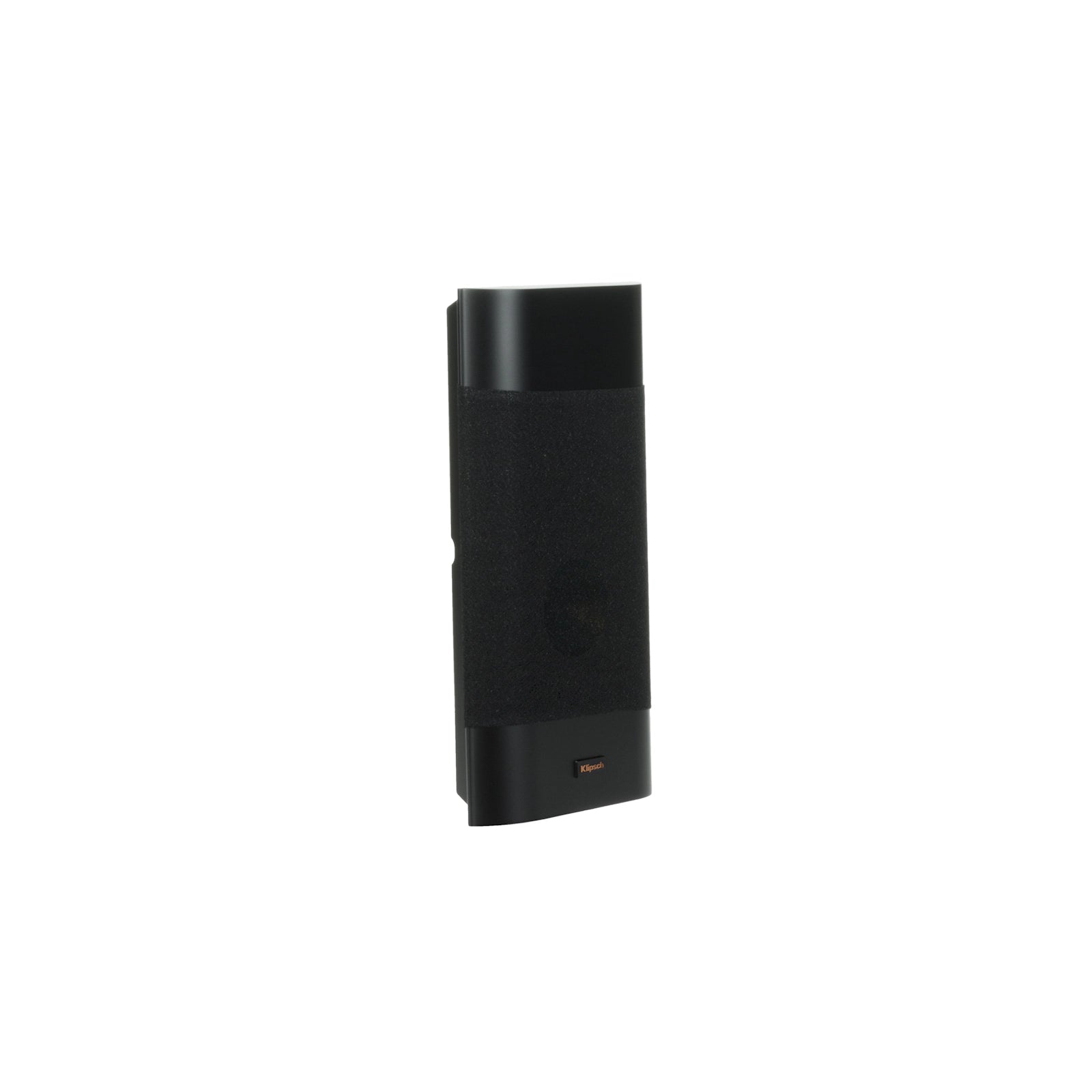

WRAP-AROUND MAGNETIC GRILLE

Front grill attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.

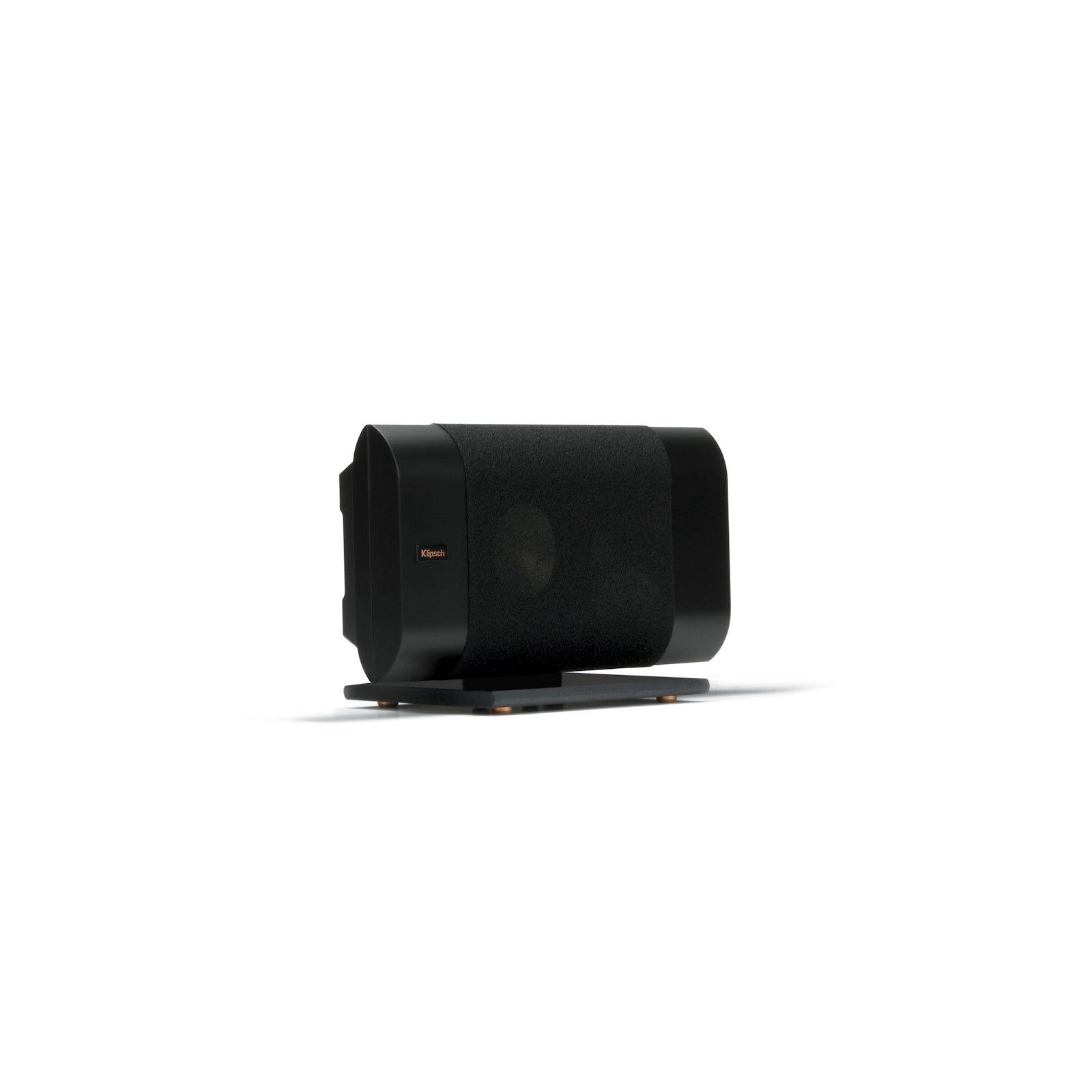

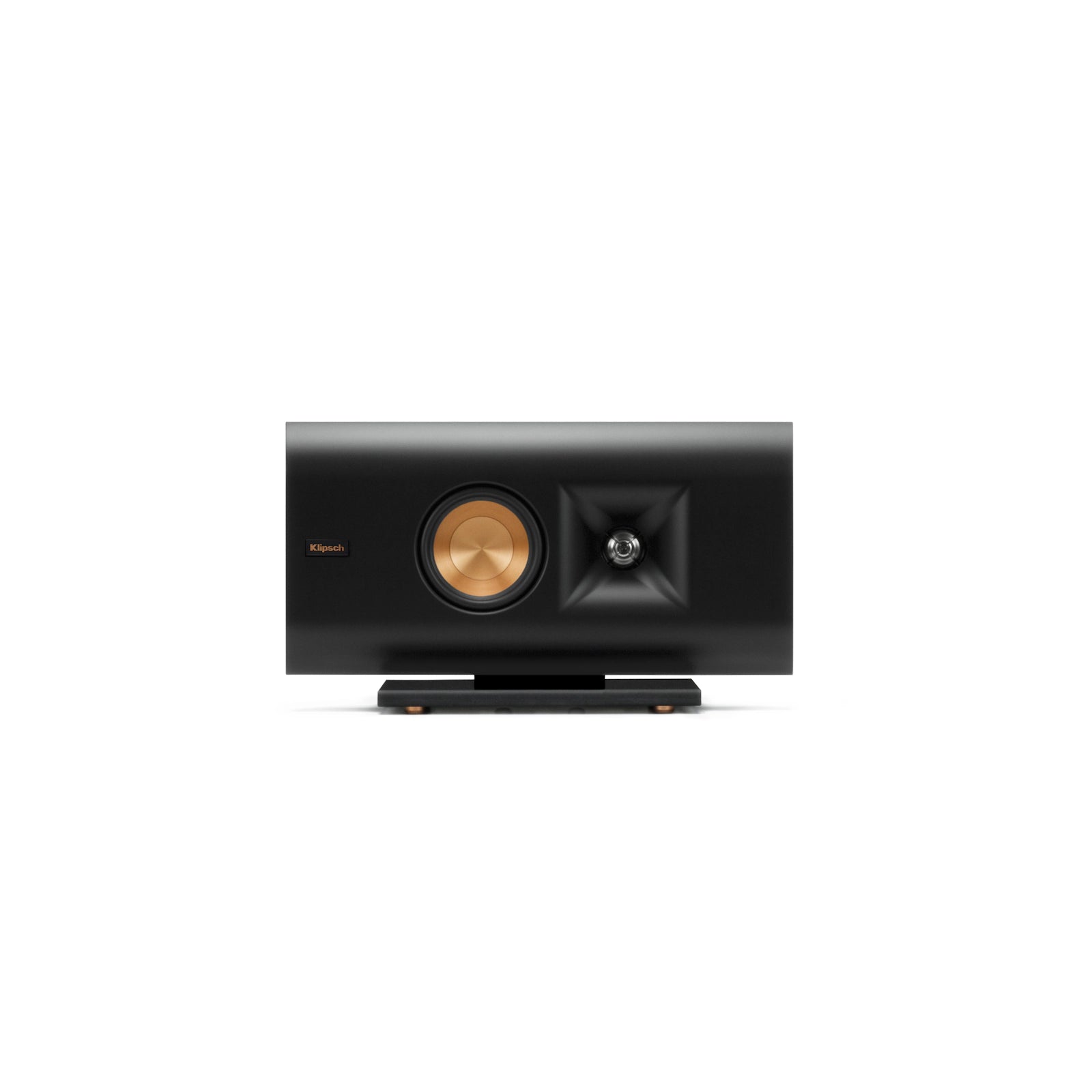

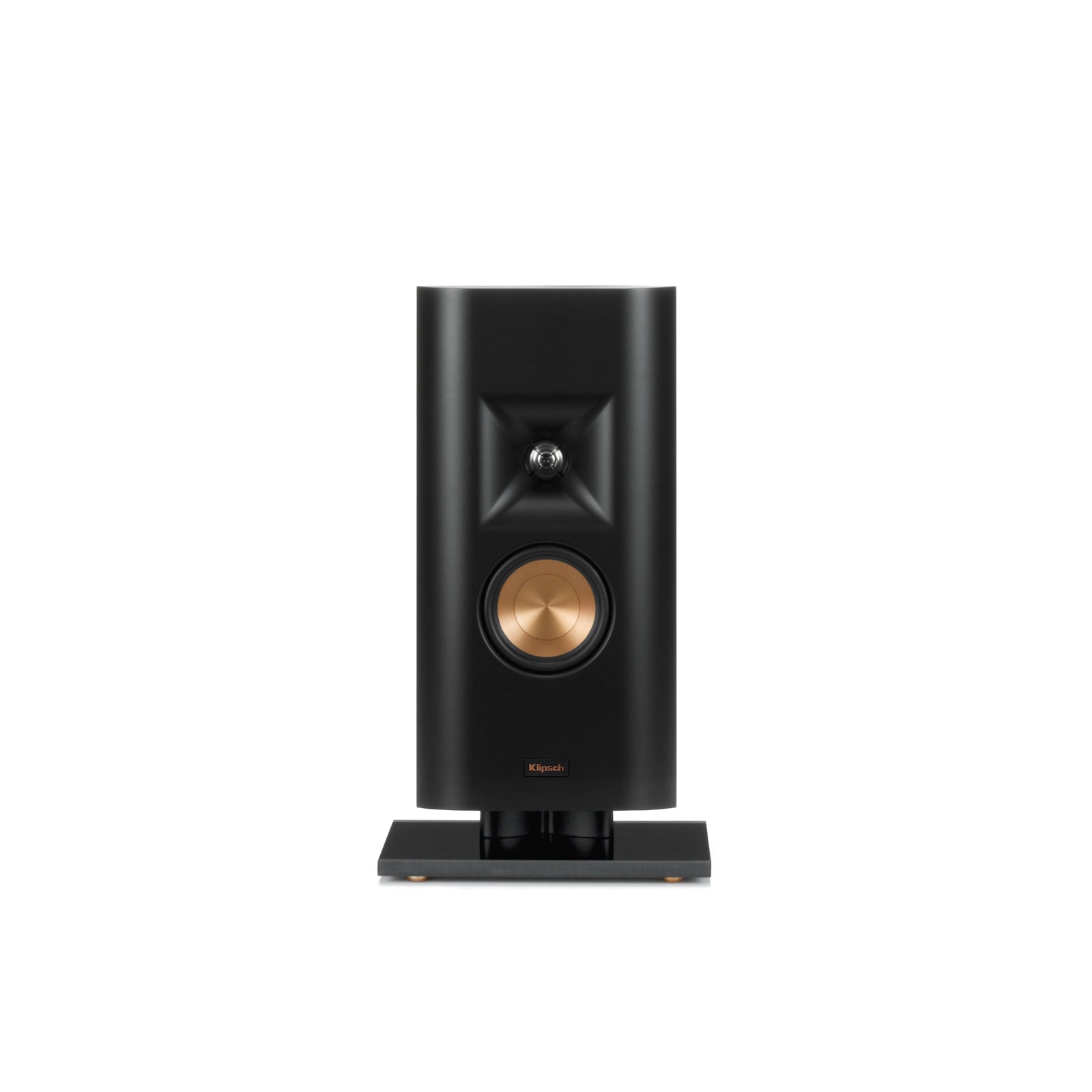

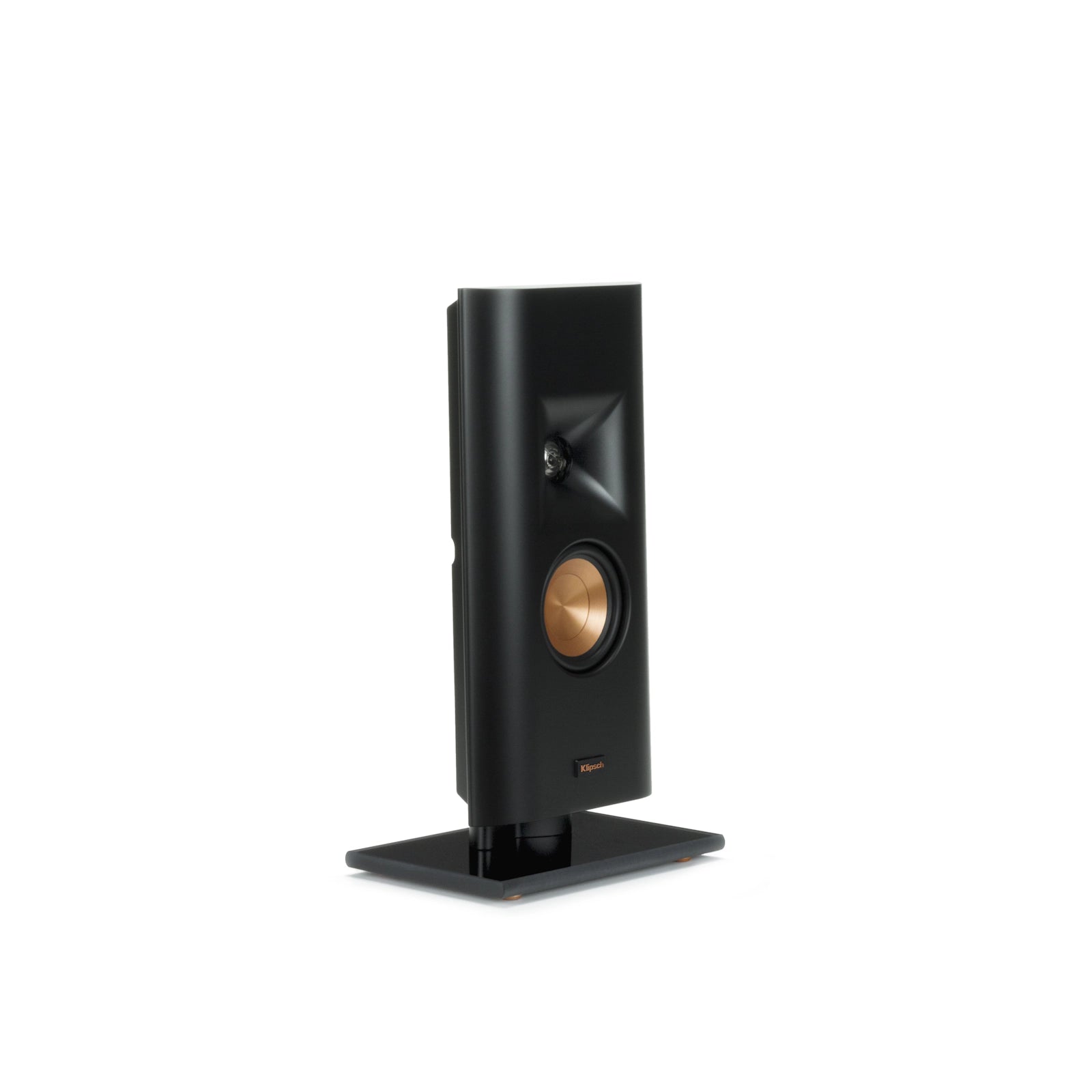

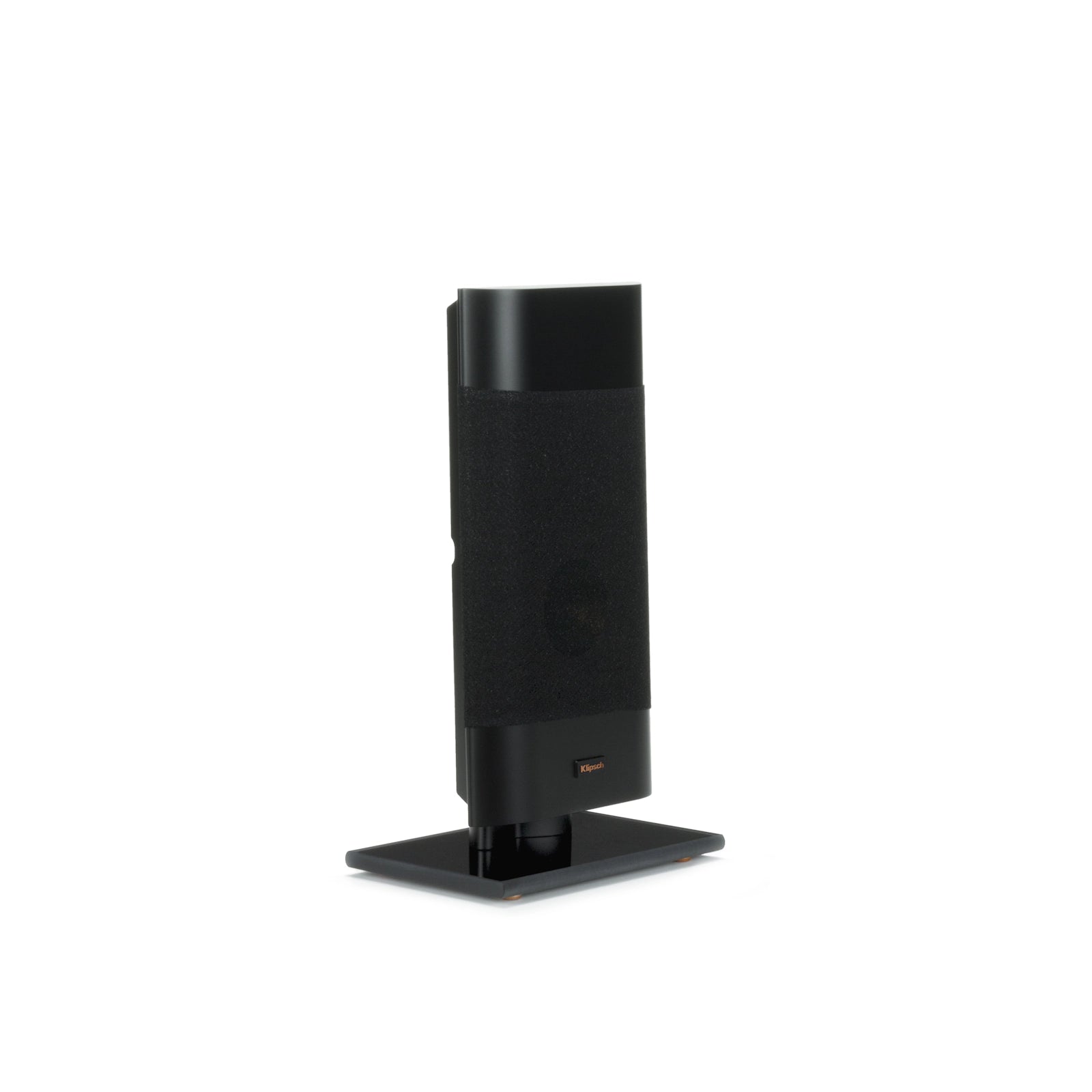

TABLE MOUNT INCLUDED

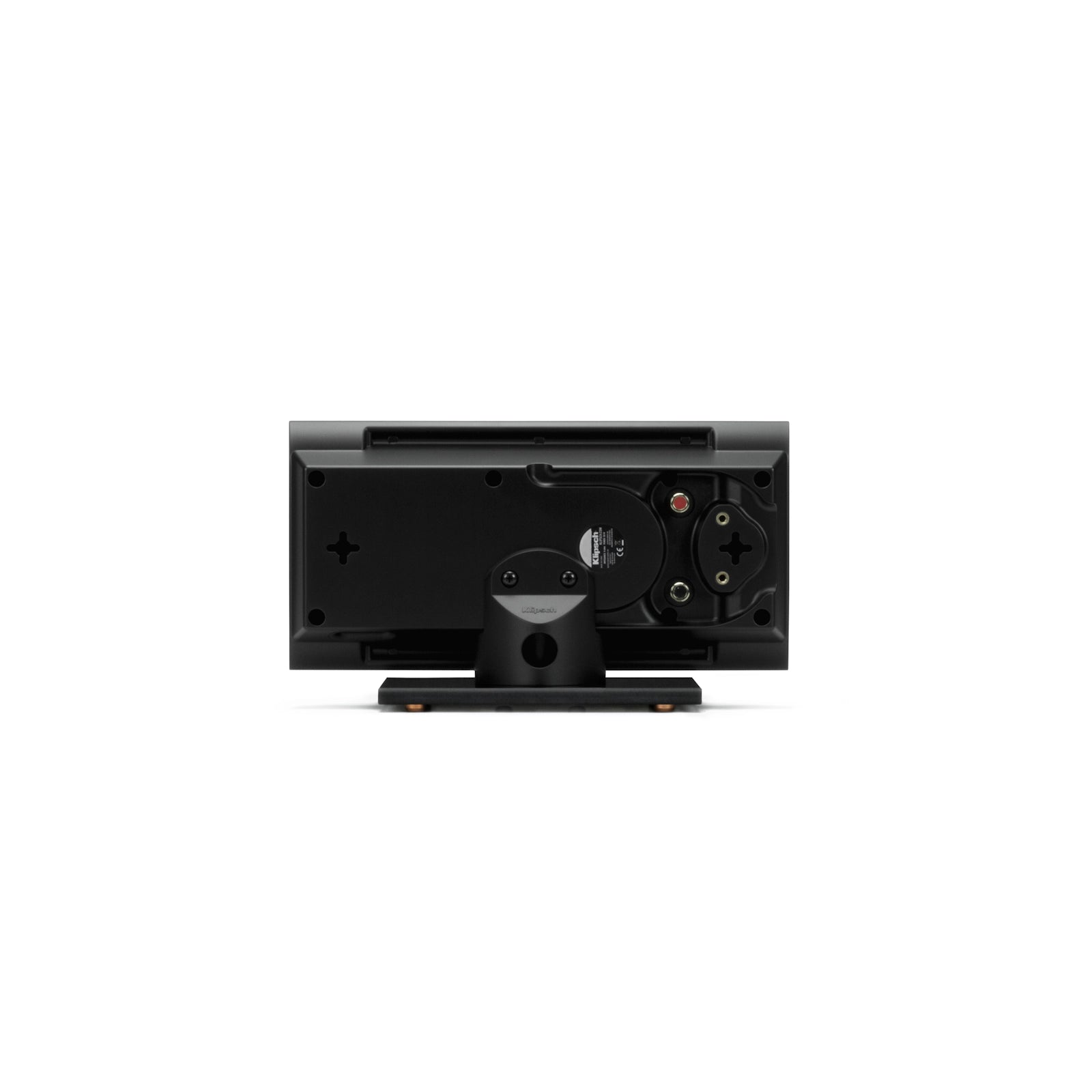

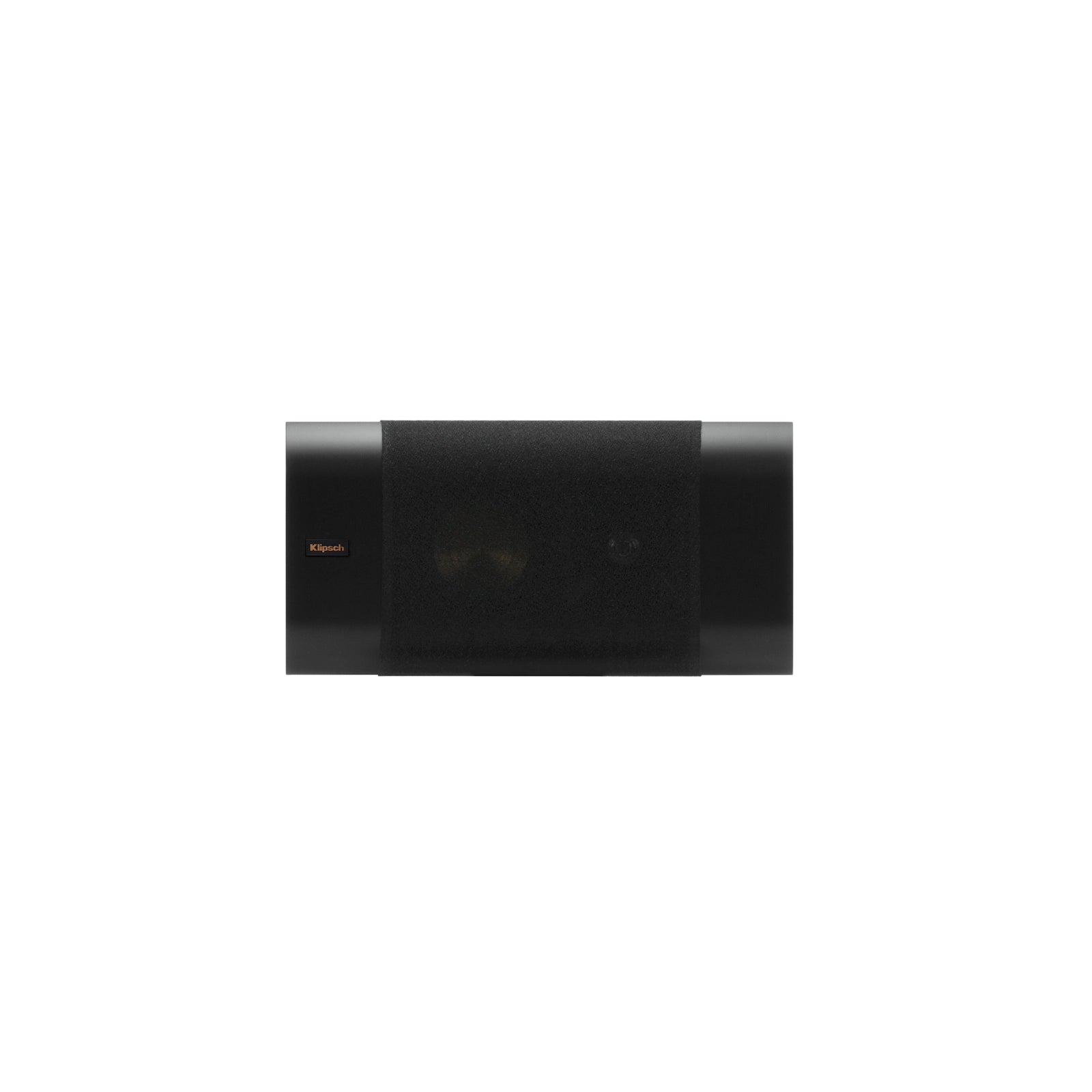

Dual four-way keyholes allows for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.

SPECIFICATIONS - MAIN CHANNEL

FREQUENCY RESPONSE 69Hz-25kHz +/- 3dB
SENSITIVITY 91dB @ 2.83V / 1m
POWER HANDLING (CONT/PEAK) 50W / 200W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 2200Hz
HIGH FREQUENCY DRIVER 1” (2.54 cm) Titanium Dome LTS Tweeter
with 90°x90° Tractrix Horn
LOW FREQUENCY DRIVER 3.5” (8.89 cm) Cerametallic Cone Woofers
ENCLOSURE MATERIAL ABS
ENCLOSURE TYPE Bass Reflex
INPUTS Single Binding Posts
HEIGHT 12" (30.48 cm)
WIDTH 6" (15.24 cm)
DEPTH 2.4" (6.10 cm)
WEIGHT 3.75 lbs (1.7 kg)
FINISH Matte Black Paint
BUILT FROM 2017
