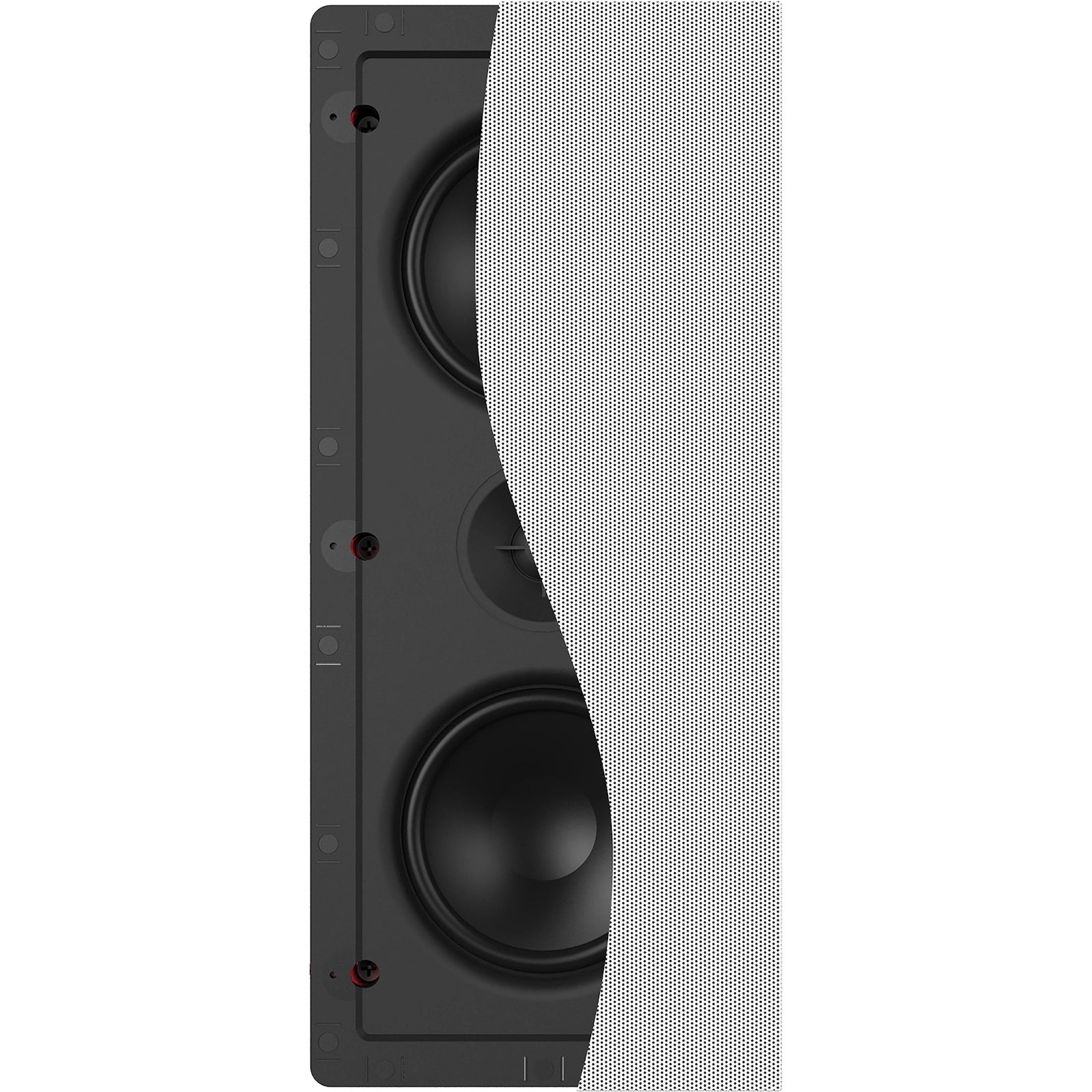

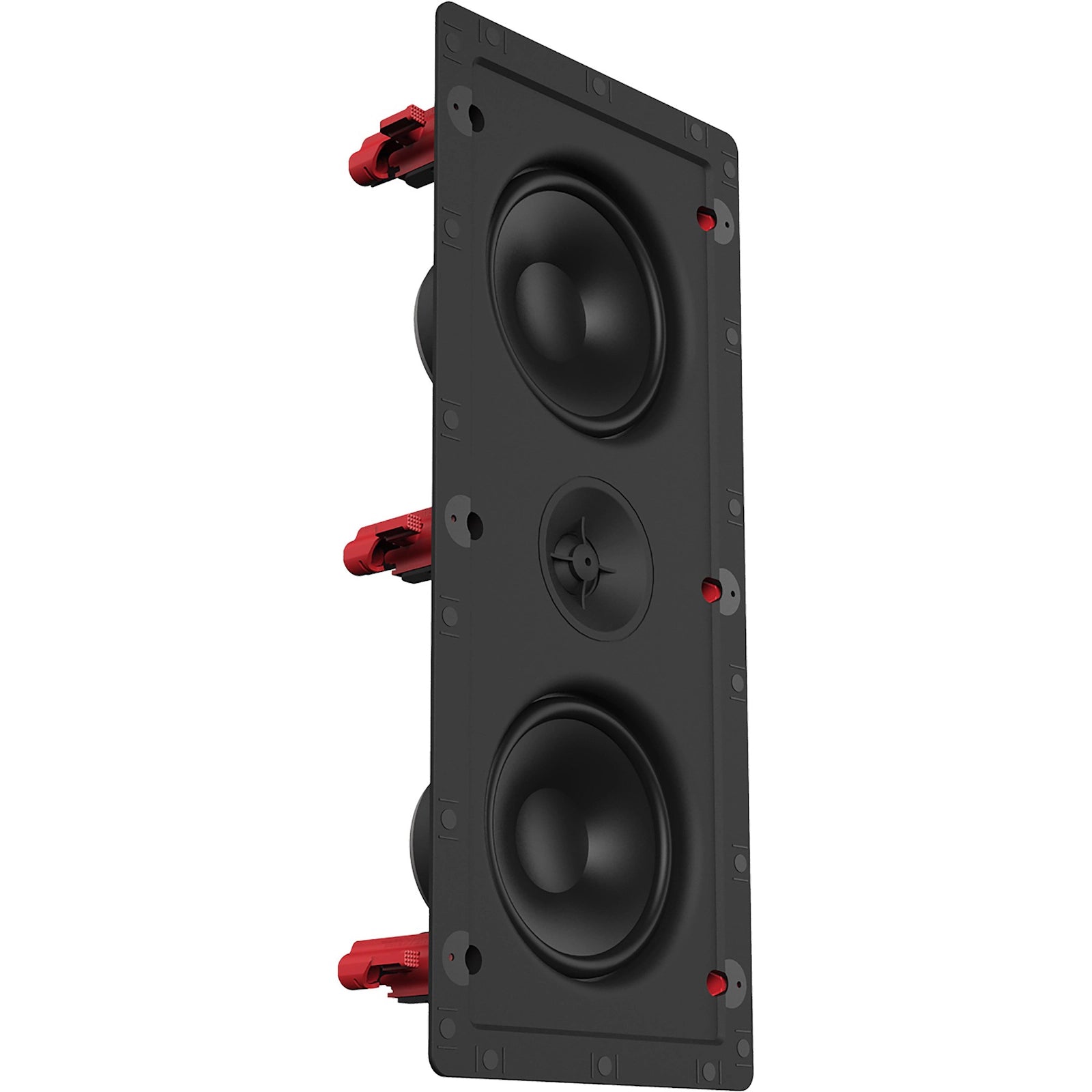

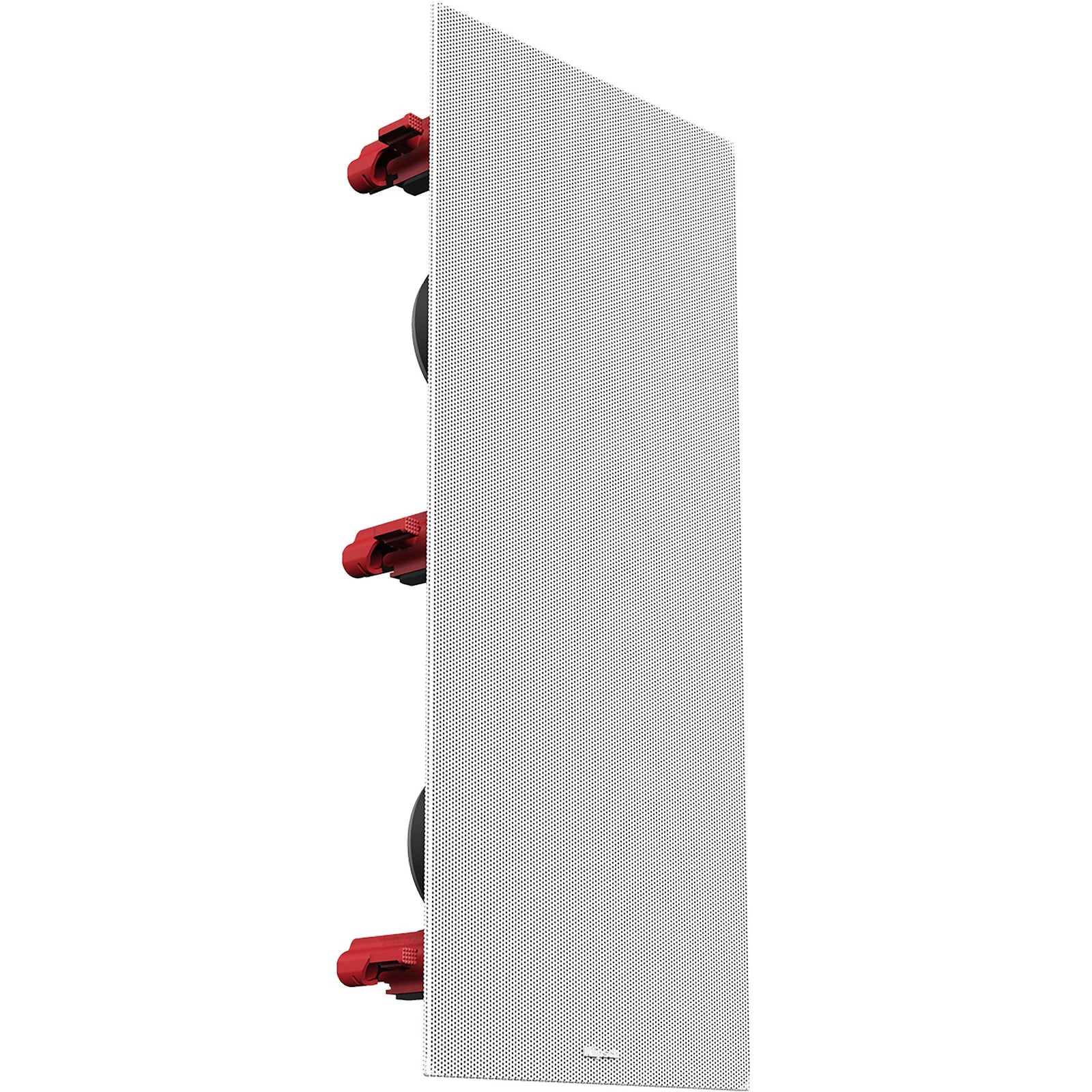

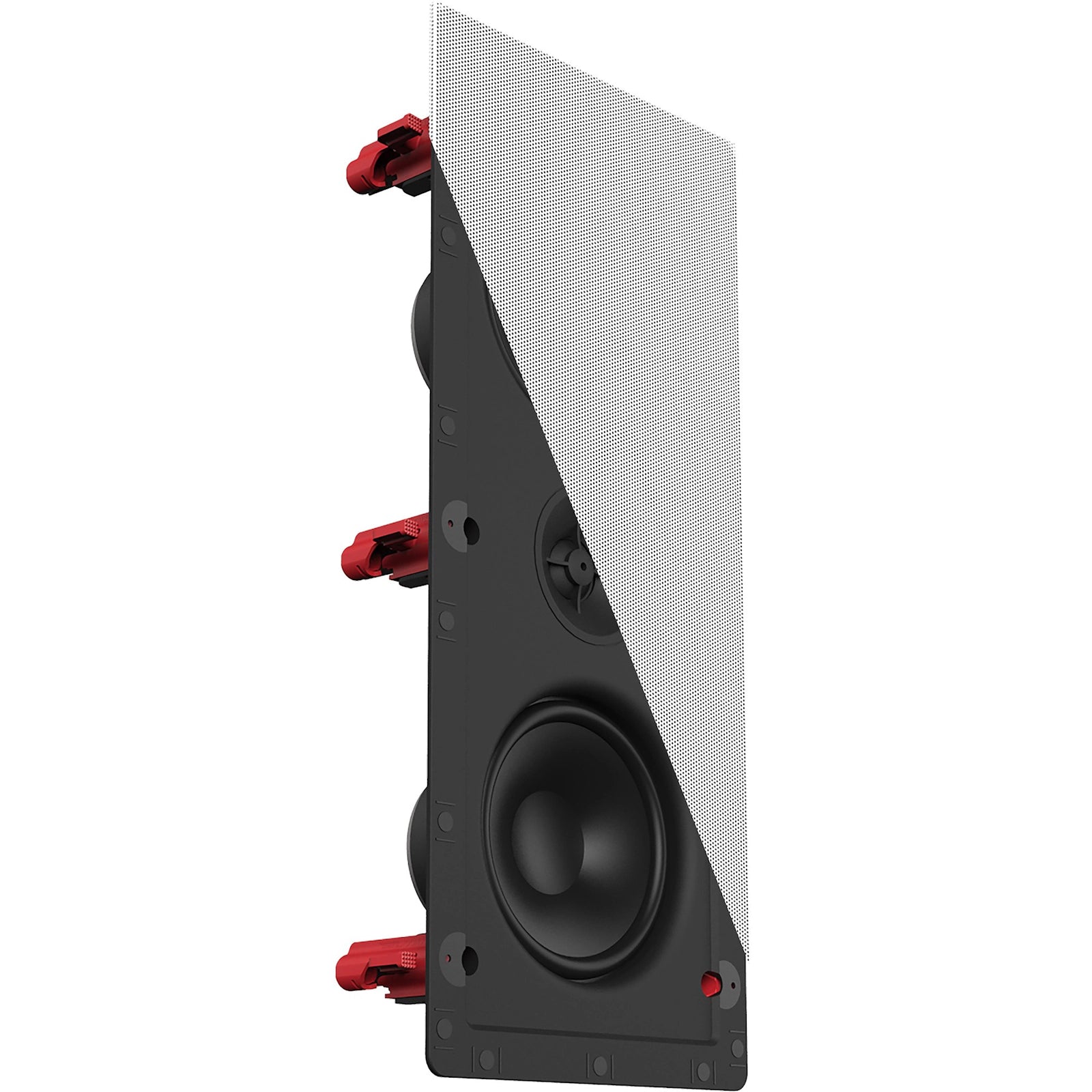

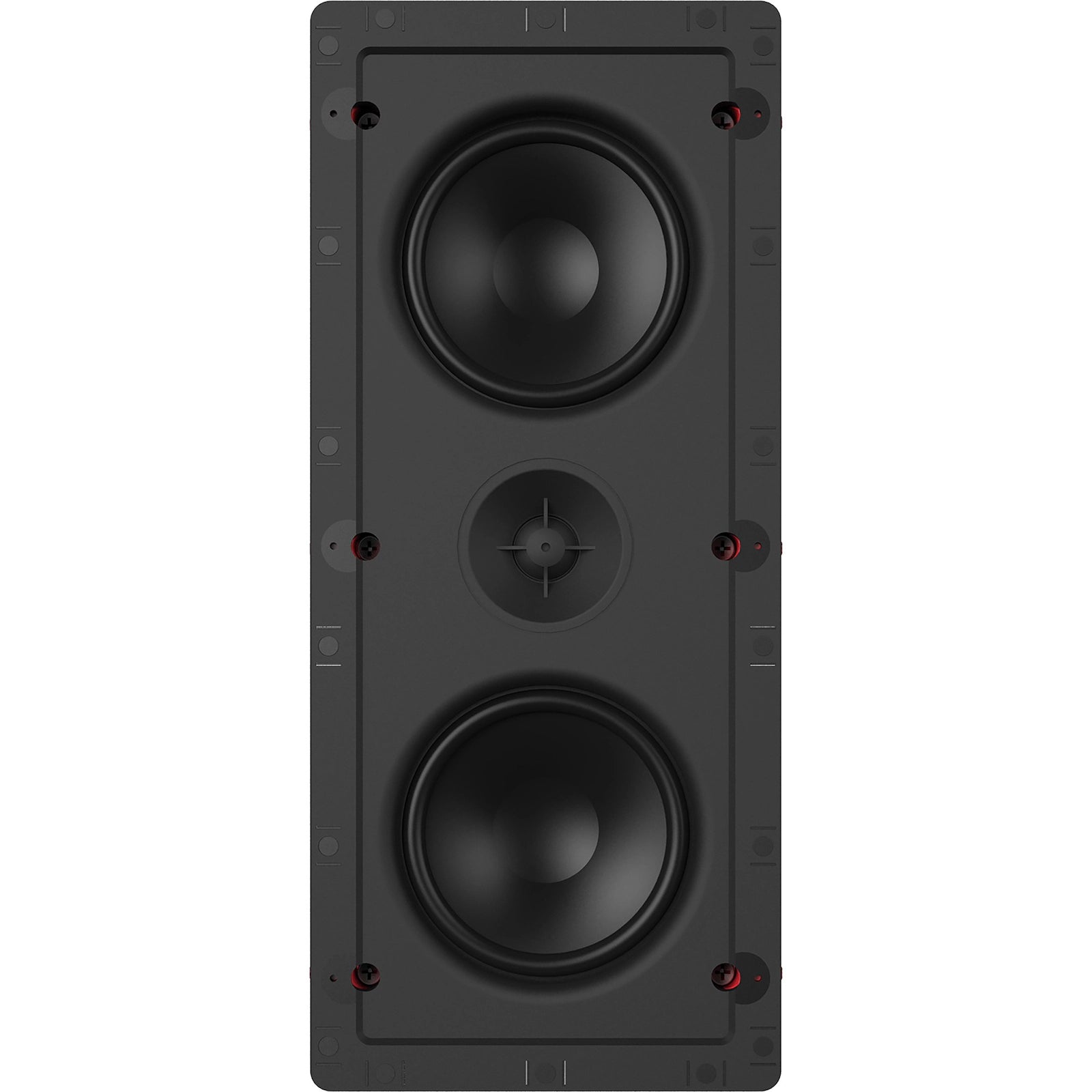

With the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-250W LCR features dual 5.25” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

HORN-LOADED PERFORMANCE

Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series brings true Klipsch power and performance. With dual 5.25” Polypropylene woofers and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-250W LCR brings dynamic, powerful, detailed Klipsch sound to your home theater system or 2-channel system.

PATENT-PENDING SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM

The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

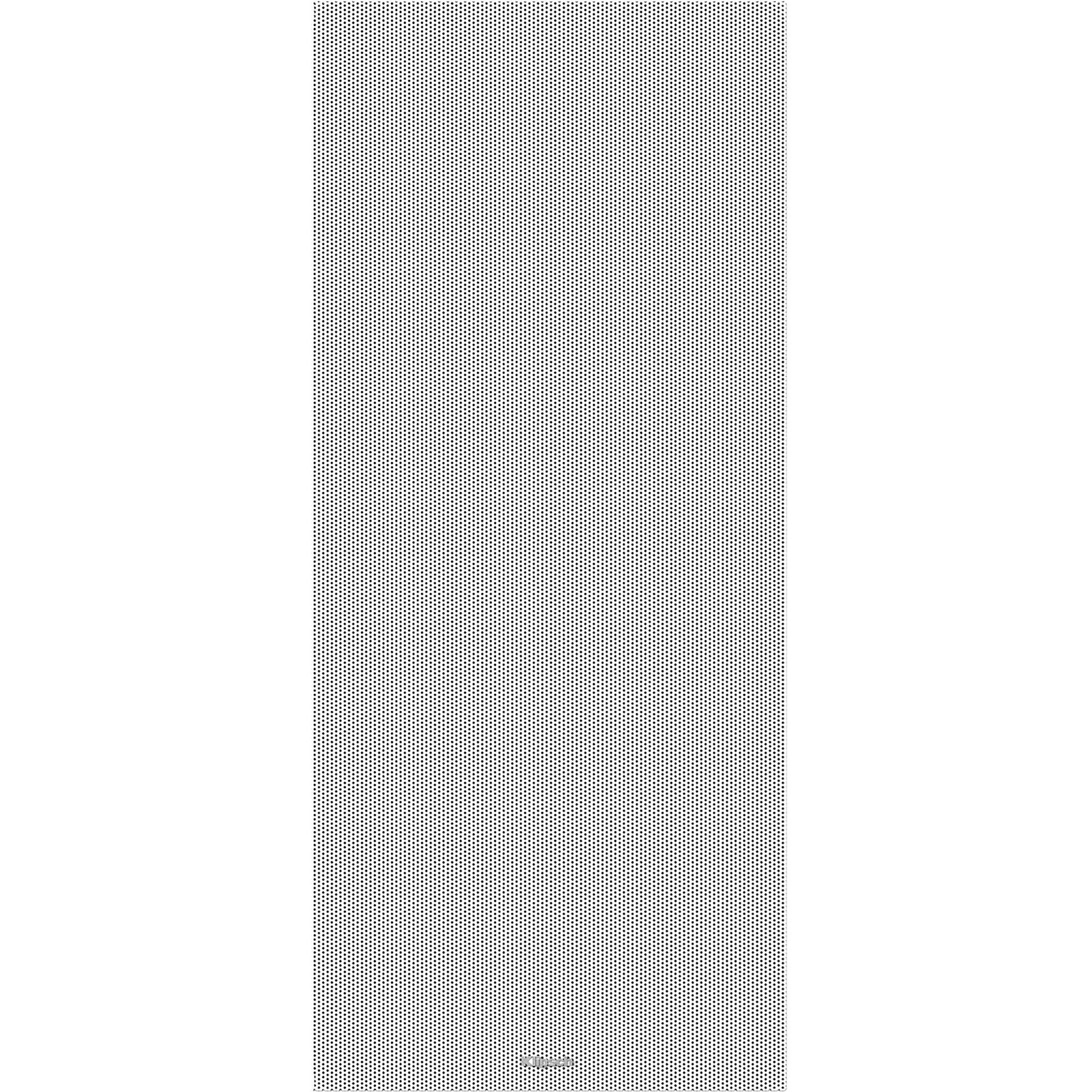

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

SPECIFICATIONS

FREQUENCY RANGE 73Hz - 20kHz +/- 3dB
HIGH FREQUENCY DRIVER 1" (2.54cm) Silk Dome Tweeter mated to a 90°x90° Tractrix®
Horn
LOW FREQUENCY DRIVER Dual 5.25" (13.34cm) Polypropylene Woofers
SENSITIVITY 92 dB @ 2.83V / 1m
COVERAGE ANGLE 100°
POWER HANDLING 60W RMS / 240W Peak
IMPEDANCE 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE ABS/Infinite Baffle
FINISH Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS 7.5” W x 17.4” H x 3.8” D (19.1cm H x 44.2cm W x 9.6cm D)
MOUNTING DEPTH 3.78” (9.35cm)
CUTOUT DIMENSIONS 16.5” H X 6.5” W (41.9cm H X 16.5cm W)
PRODUCT WEIGHT 6.5lbs (2.95kg)
INCLUDED IN BOX Flat Magnetic Grille
INSTALL KIT IK-502-W II (Sold Separately)
BUILT FROM 2017
