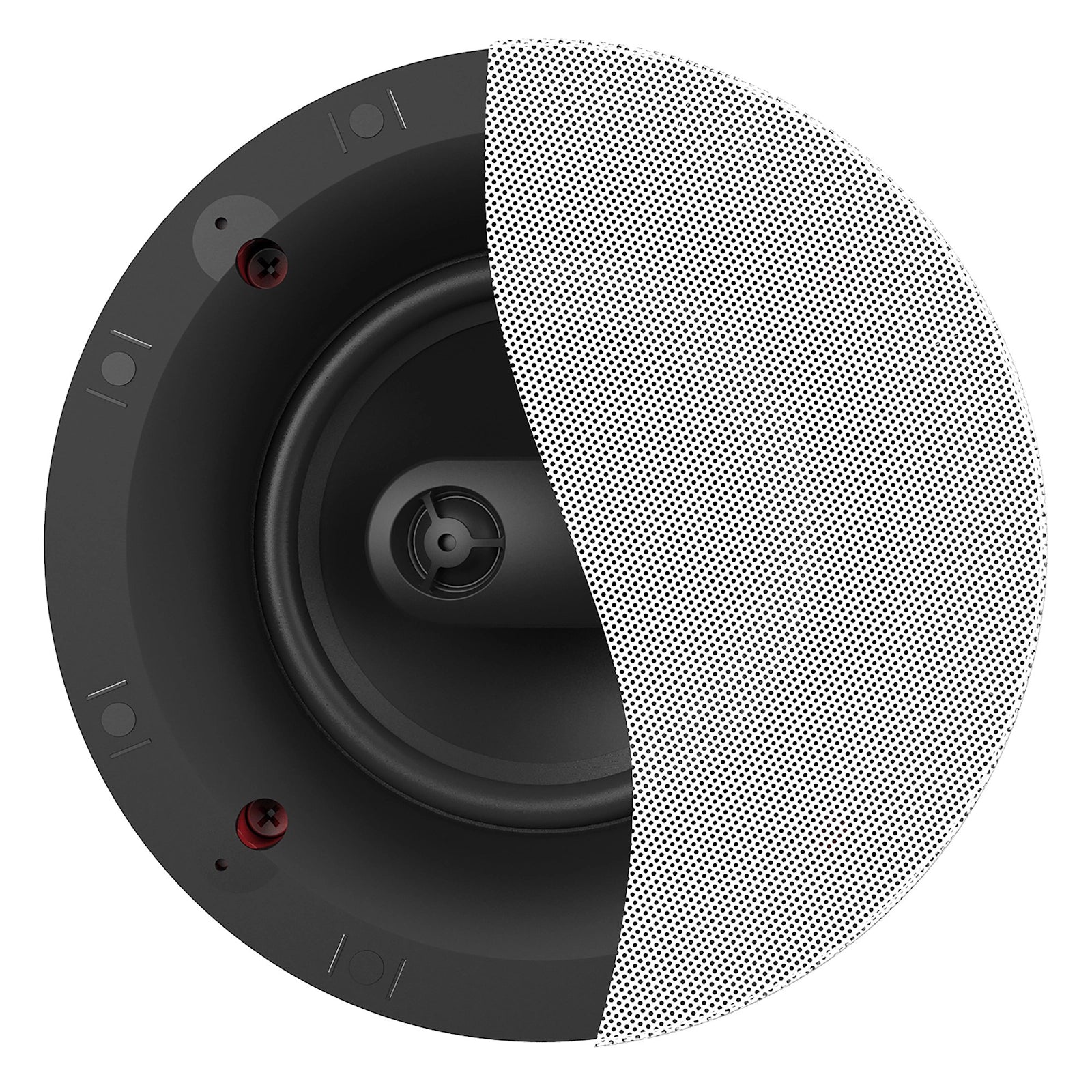

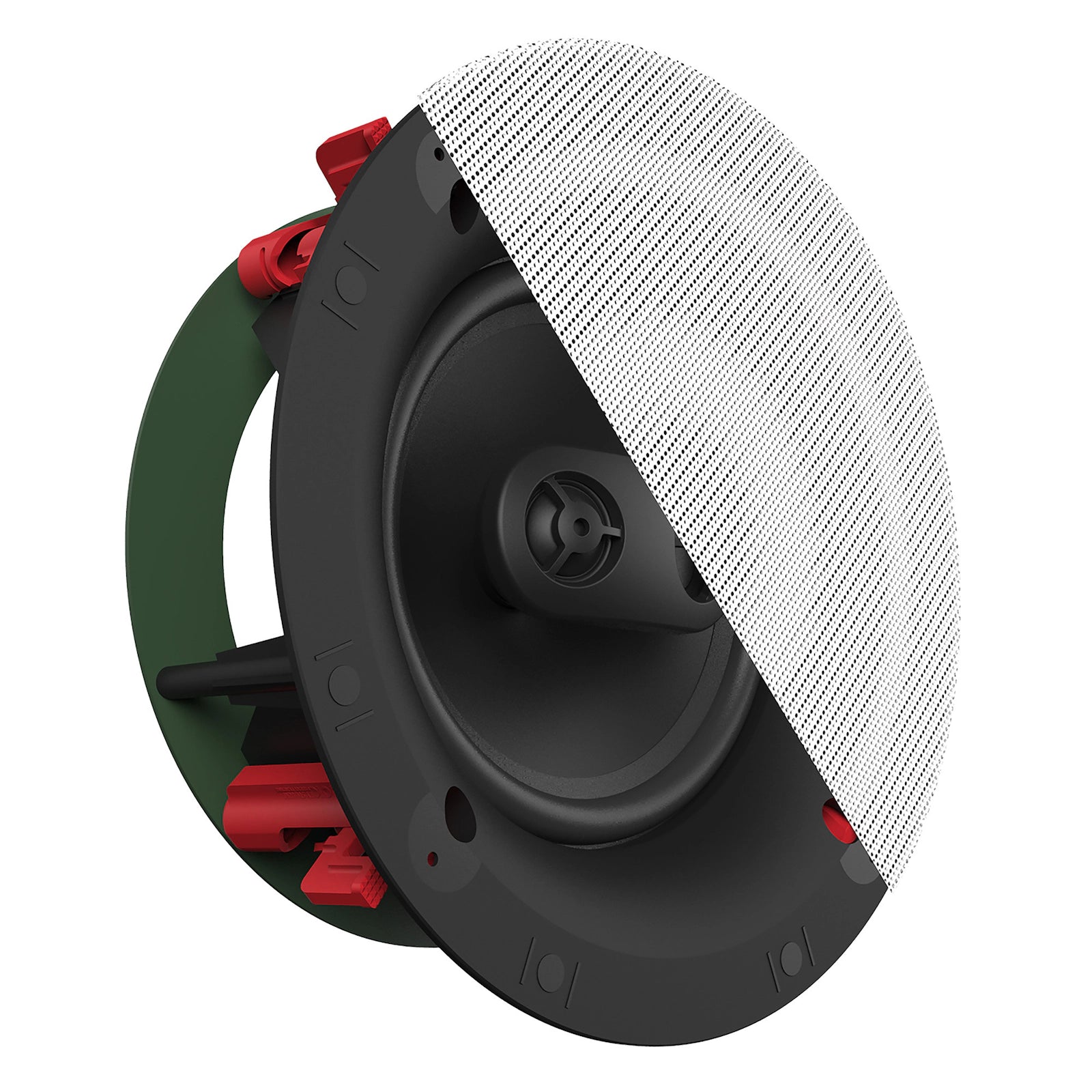

Get the Klipsch Signature Horn-Loaded performance at an incredible value. The DS-160CSM features a 6.5” Polypropylene woofer and dual 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

STEREO SOUND FROM A SINGLE SPEAKER

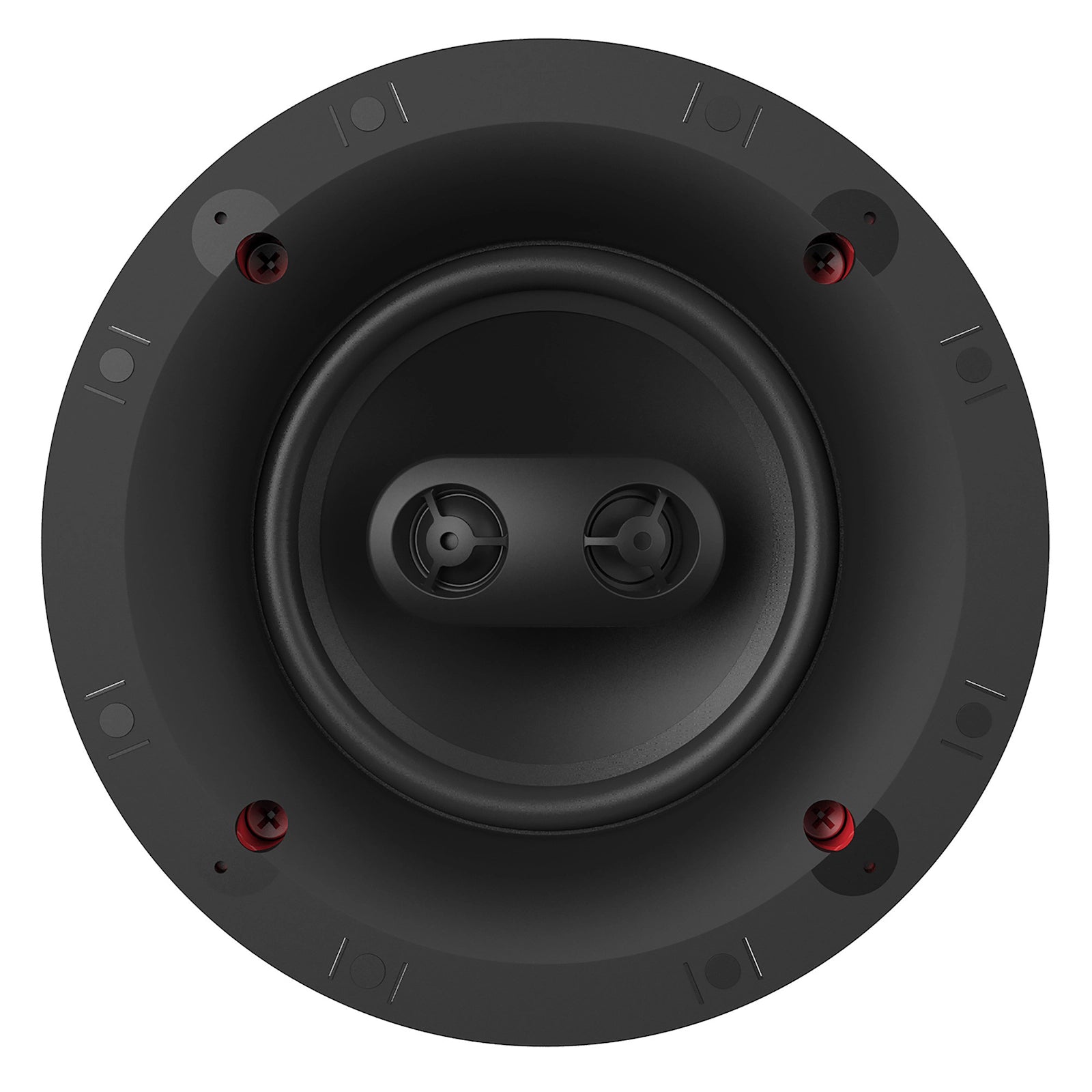

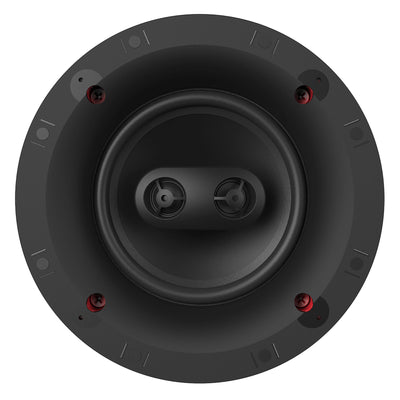

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 6.5” Polypropylene woofer and two .75” Silk Dome
tweeters, the DS-160CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.

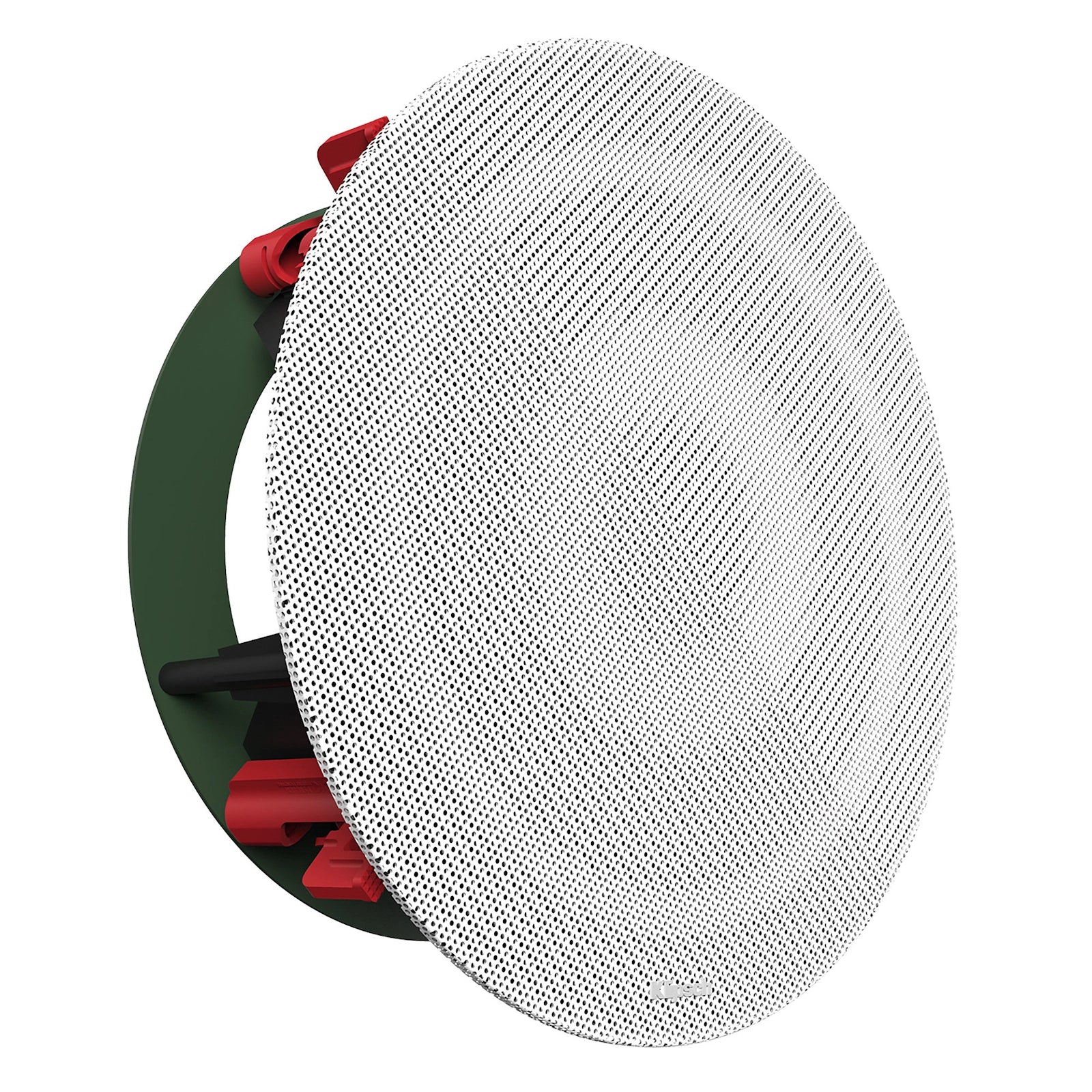

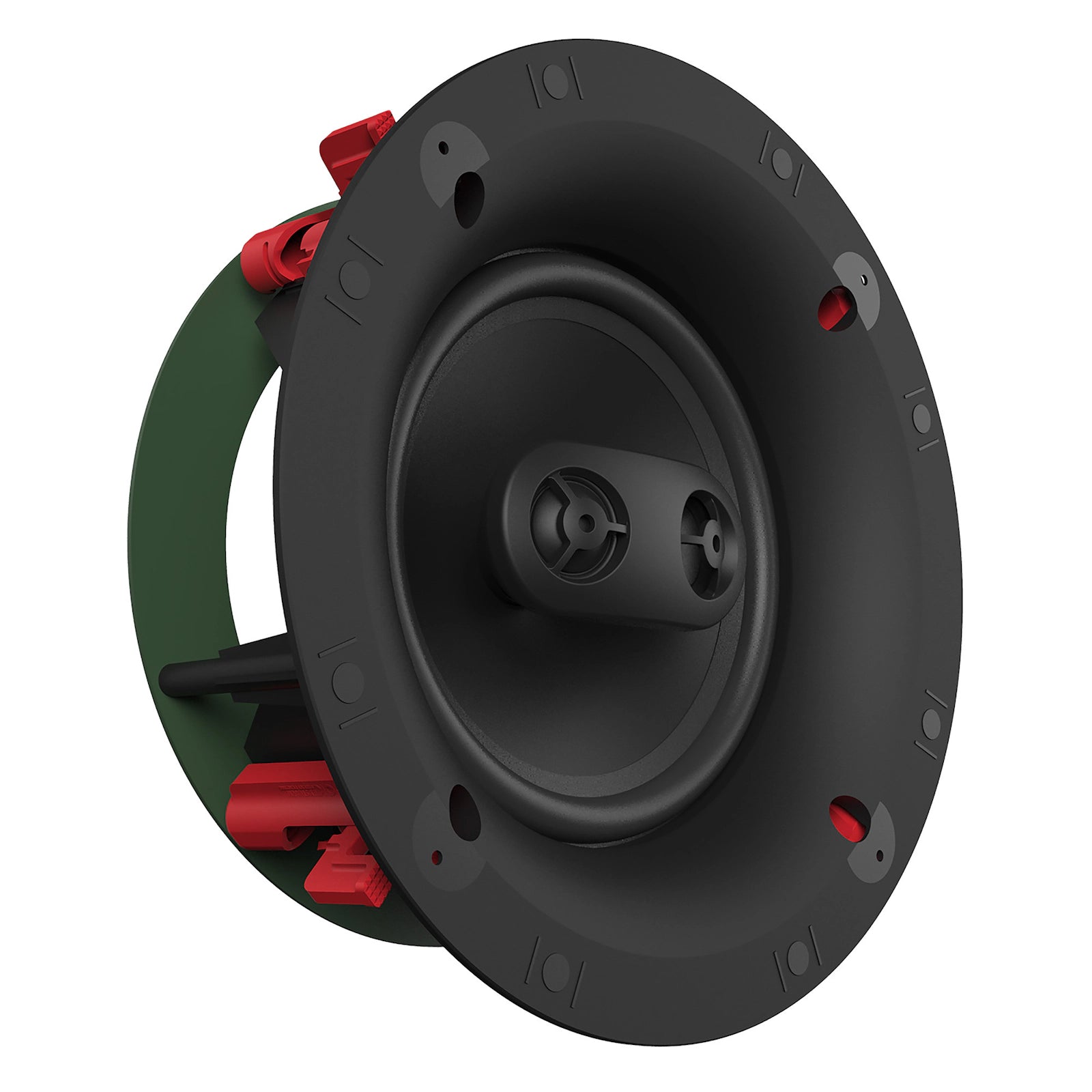

EXCLUSIVE PATENTED SKY HOOK® CINCH INSTALLATION SYSTEM

This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%.

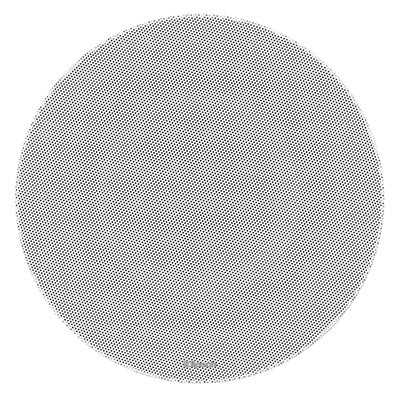

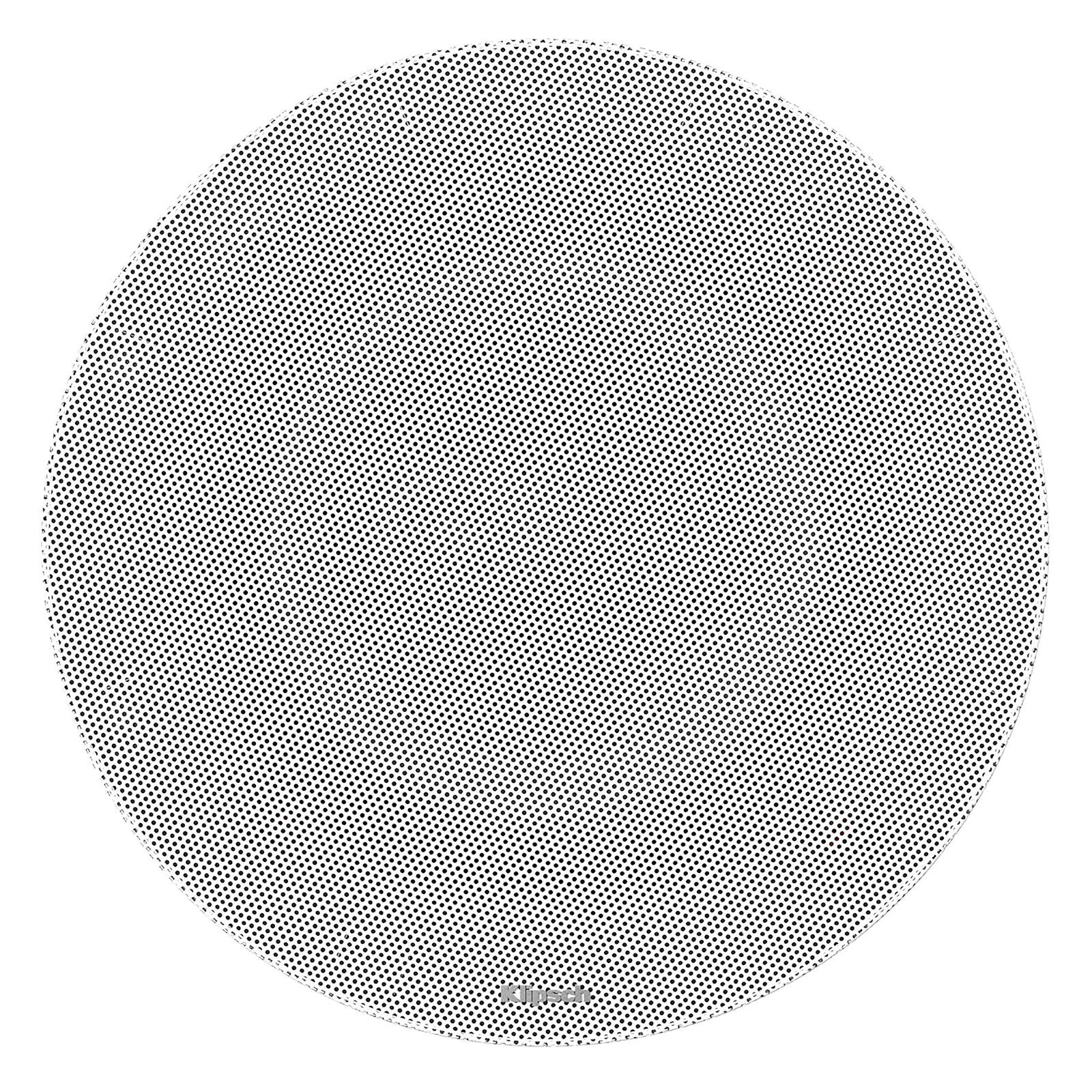

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

SPECIFICATIONS

FREQUENCY RANGE 65Hz-20KHz +/- 3dB
HIGH FREQUENCY DRIVER Dual .75" (19mm) Silk Dome Tweeters
LOW FREQUENCY DRIVER 6.5” (165.1mm) Dual Voice Coil Polypropylene Woofer
SENSITIVITY 91 dB @ 2.83V / 1m
COVERAGE ANGLE 160°
POWER HANDLING 50W RMS / 200W RMS
IMPEDANCE 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE ABS/Infinite Baffle
FINISH Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS 9.2” W x 9.2” H x 4.09” D (233mm H x 233mm W x 104mm D)
MOUNTING DEPTH 3.98” (101mm)
CUTOUT DIMENSIONS 7.99” (203mm)
PRODUCT WEIGHT 7 lbs (3.18kg)
INCLUDED IN BOX Flat Paintable Magnetic Grille
INSTALL KIT IK-650-C II (Sold Separately)
FIRE RATED ENCLOSURE ME-650-C (Sold Separately)
BUILT FROM 2017
