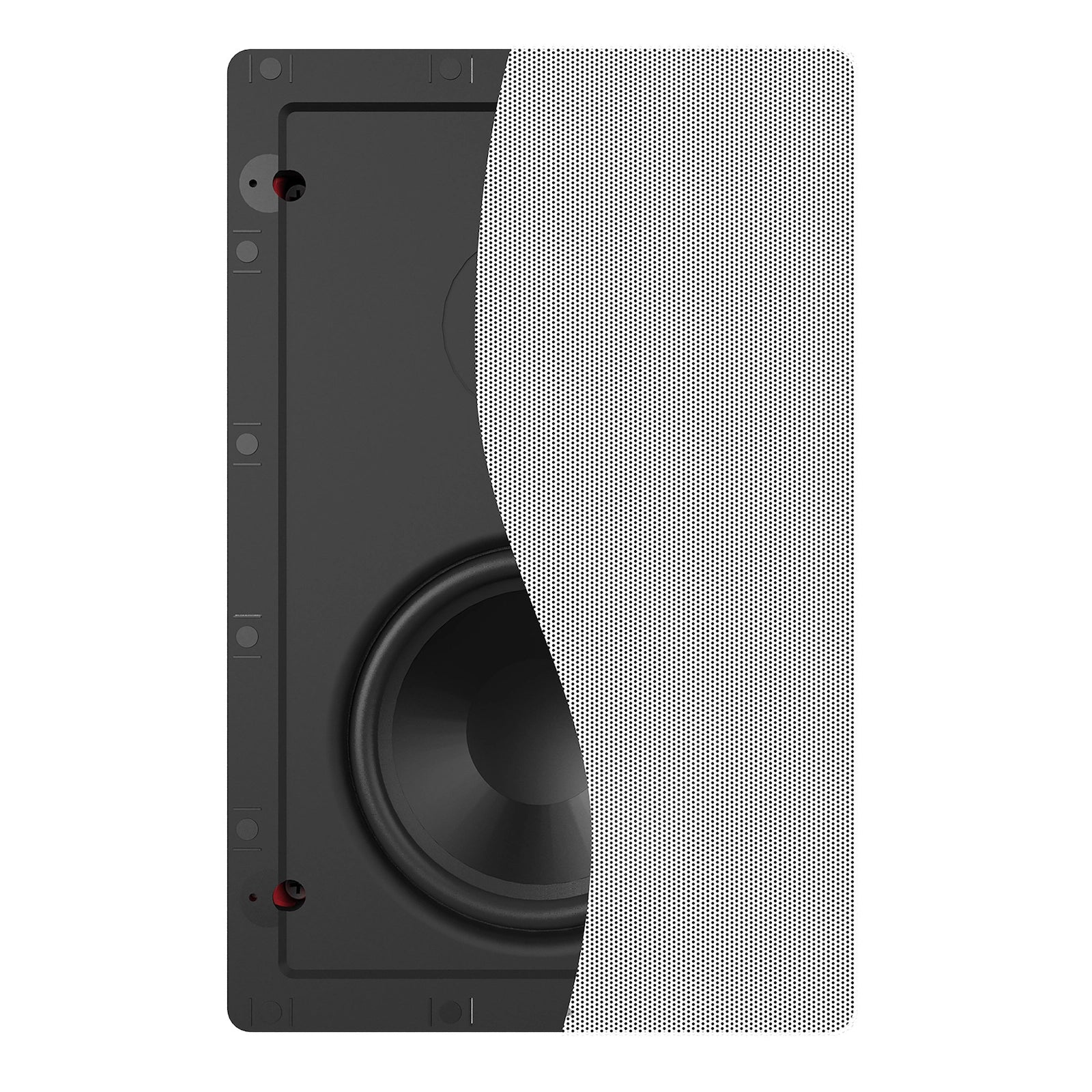

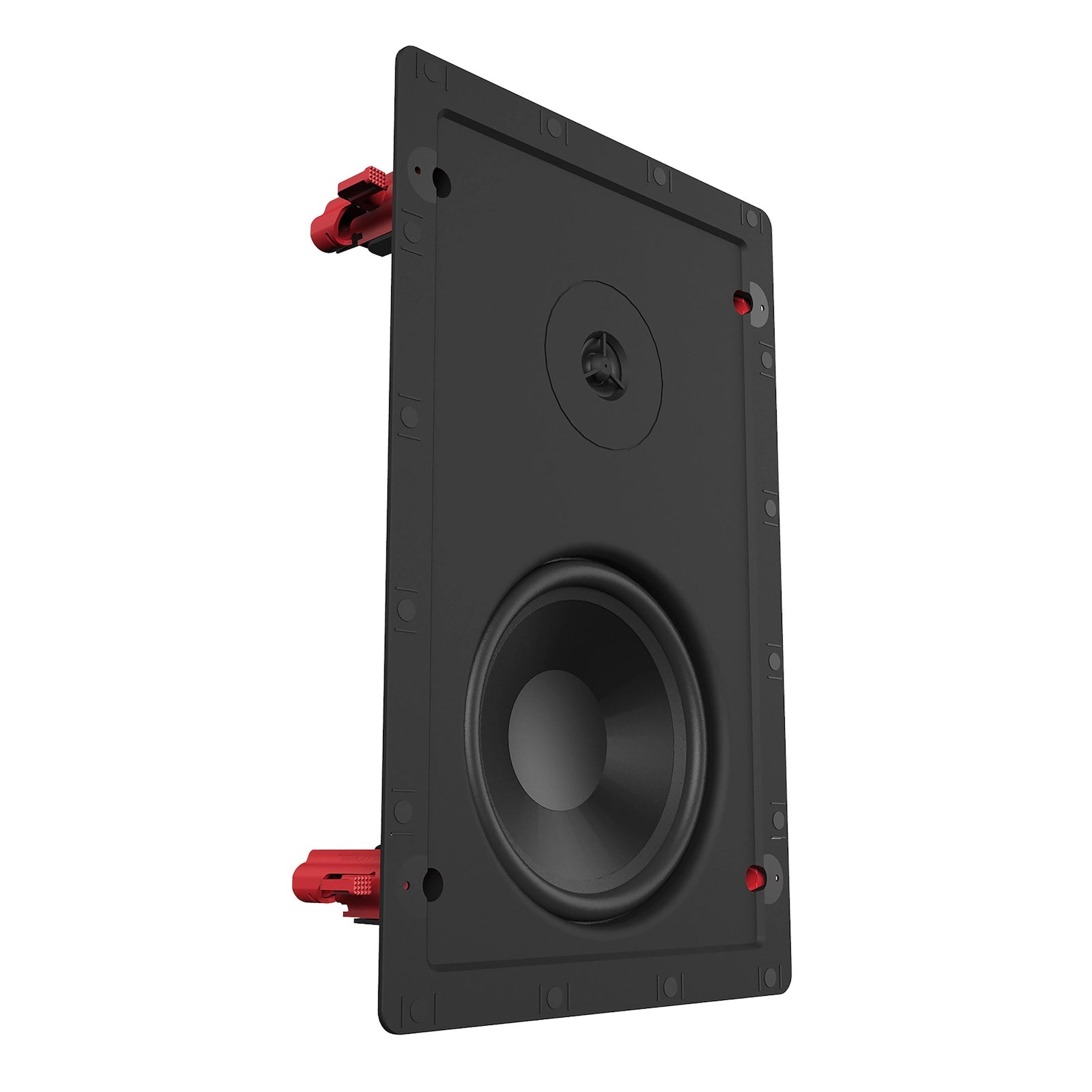

Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-16W features a 6.5” Polymer woofer and a 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

GOOD SOUND IN ANY ROOM

Using the same design principles of our premium architectural and box speaker lines, the all new Klipsch Custom series delivers true Klipsch sound power and performance to any budget. With a 6.5” Polymer woofer and a 1” Polymer Dome tweeter the CS-16W brings
dynamic, powerful, detailed Klipsch sound to your distributed audio or home theater system.

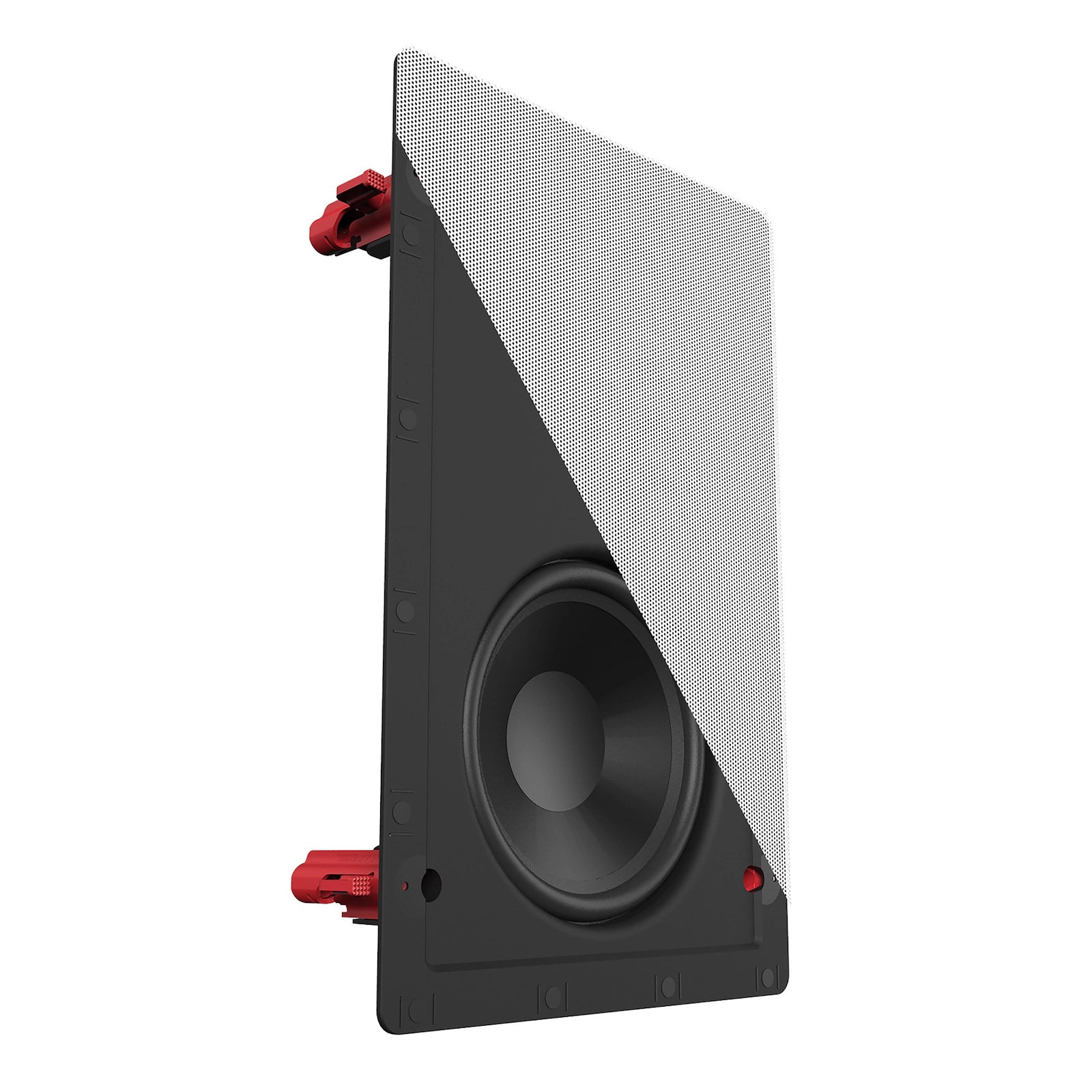

PATENT-PENDING SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM

The exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

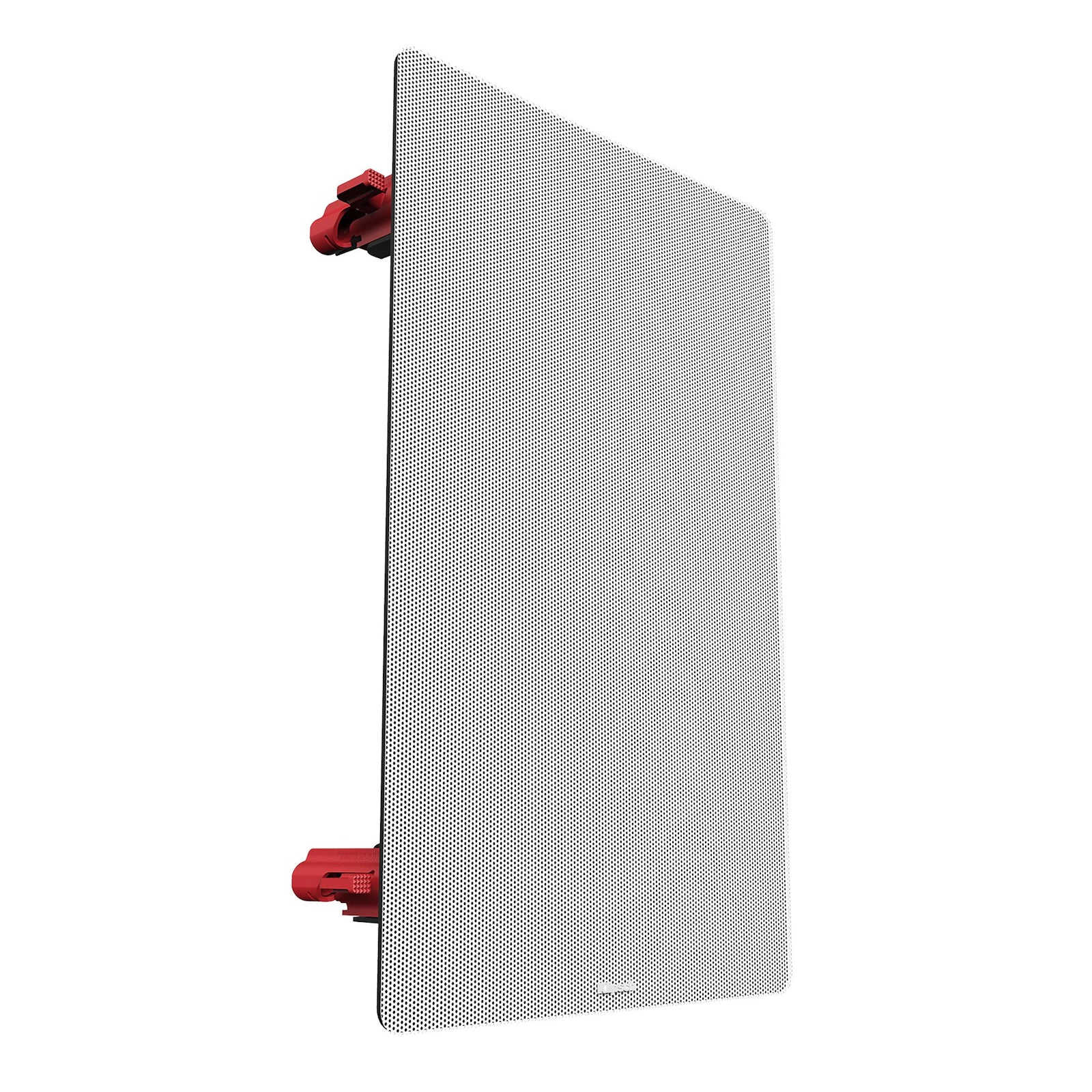

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

SPECIFICATIONS

FREQUENCY RANGE 65Hz - 20kHz +/- 3dB
HIGH FREQUENCY DRIVER 1" (2.54cm) Polymer Tweeter
LOW FREQUENCY DRIVER 6.5” (16.51cm) Polymer Woofer
SENSITIVITY 91 dB @ 2.83V / 1m
POWER HANDLING 40W RMS / 160W RMS
IMPEDANCE 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE ABS/Infinite Baffle
FINISH Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS 9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D)
MOUNTING DEPTH 3.78” (9.6cm)
CUTOUT DIMENSIONS 13” H X 8” W (33.0cm H X 20.3cm W)
PRODUCT WEIGHT 7.2lbs (3.25kg)
INCLUDED IN BOX Flat Paintable Magnetic Grille
INSTALL KIT IK-650-W II (Sold Separately)
FIRE RATED ENCLOSURE ME-650-W (Sold Separately)
BUILT FROM 2017
